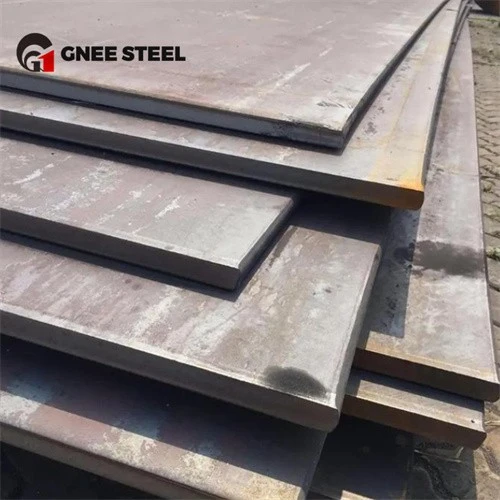

Hot rolled S690QL1 High Strength Steel Sheet



‌S690QL1 hot-rolled steel plate is a quenched and tempered high-strength steel plate that complies with European standard EN 10025-6‌.



S690QL1 high-strength steel plate has excellent mechanical properties and good toughness, with an impact temperature of -60°C and high impact absorption energy. In addition, S690QL1 alloy steel plate also has good welding and processing properties, making it easy to perform processing operations such as cutting, bending, and drilling‌.



S690QL1 steel plate is widely used in multiple industrial fields, such as coal mining machinery, engineering machinery (such as hydraulic supports, port cranes, flatbed transporters, etc.), construction, bridges, ships, vehicles, pressure vessels, electronics industry, and environmental protection fields.





EN10025-6 Steel Plate Chemical Composition
Grade	Quality	C	Mn	Si	P	S	N	Other Elements
All grades	No symbol	0.22	1.80	0.86	0.030	0.017	0.016	Cr 1.60, B 0.006, Cu 0.55, Mo 0.74, Nb 0.07, Ni 4.10, Ti 0.07, V 0.14, Zr 0.17
	L	0.22	1.80	0.86	0.025	0.012	0.016
	L1	0.22	1.80	0.86	0.025	0.012	0.016



EN10025-6 Steel Plate Yield Strength Min. (Mpa)
Thickness (mm)	3-50mm	50-100mm	100-125mm	125-200mm
S690Q/S690QL/S690QL1	690Mpa	650Mpa	630Mpa	630Mpa



EN10025-6 Steel Plate Tensile Strength and Elongation
EN 10025-6	Tensile	Tensile	Tensile	Tensile	Elongation
Grade	Mpa	Mpa	Mpa	Mpa	After fracture
Thickness (mm)	3-50mm	50-100	100-125	125-200
S690Q/S690QL/S690QL1	770-940	760-930	710-900	710-900	≥14%





Heavy road vehicles: chassis, dumper bodies.

Cranes construction: booms of mobile cranes.

Structural steelworks: bridges, bridge components, components for offshore structures.

Pressure vessels: fixed and transportable storage tanks, vessels.

Power plants: penstocks, spiral cases.

Materials handling: lifting and mobile equipment.

Mining and earthmoving equipment: roof supports.

Agricultural equipment and trailers.





♦ Low temperature impacting test
♦ Quenching and Tempering heat treatment
♦ Ultrasonic test under EN 10160,ASTM A435,A577,A578
♦ Issued Orginal Mill test certificate under EN 10204 FORMAT 3.1/3.2
♦ Shot blasting and Painting,Cutting and welding as per end user's demands















We support multi-specification, multi-brand weather resistant steel plate customization, if you have hot rolled S690QL1 high strength steel sheet or other corten steel plate product customization needs, please contact us!
