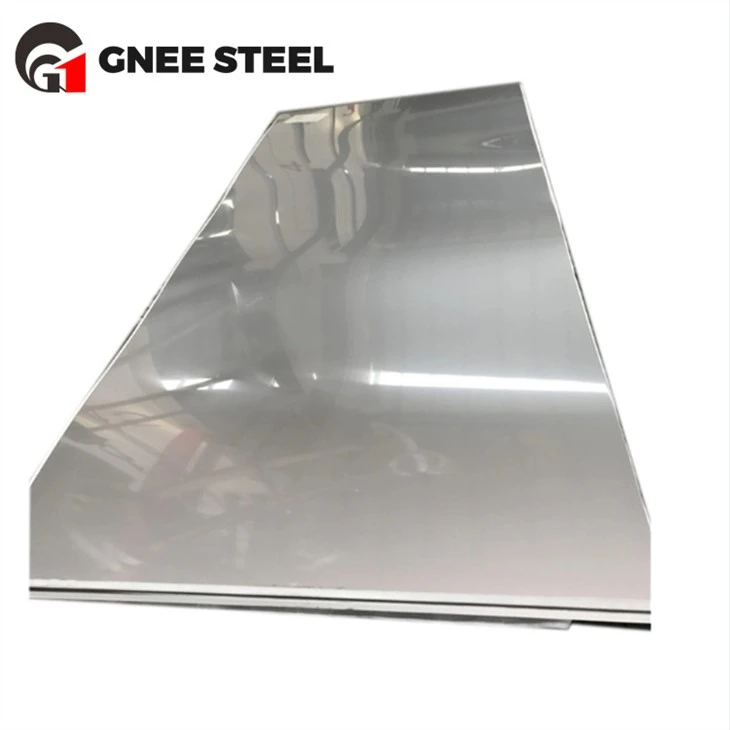

GB 3077 12Cr1MoV Steel Material Sheet

Gnee Steel (Tianjin) Co., Ltd. is one of the most professional gb 3077 12cr1mov steel material sheet manufacturers and suppliers in China. Welcome to wholesale customized gb 3077 12cr1mov steel material sheet at competitive price from our factory. Good service and quality products are available.



12Cr1MoV, alloy structural steel.Standard: GB/ t3077-1999. 12Cr1MoV is a kind of pearlite low alloy heat strength steel, which still has high heat strength and oxidation resistance at 580℃, and has a high durable plasticity. The production process is simple and the welding property is good, but it is sensitive to the normalizing cooling speed. 12Cr1MoV heat resistant steel is used for manufacturing steam parameters 540℃conduit, metal wall temperature less than 580℃ superheater tube and forgings.



Main features: compared with 12CrMoV steel, this steel has higher oxidation resistance and thermal strength. The creep limit of the steel is very close to the value of the endurance strength, and it has high plasticity under the condition of the endurance tension. The technology and weldability of the steel are good, but the preheating is required to 300℃ before welding, and the stress is removed after welding.

It is a kind of steel widely used in superheater, header and main steam pipe of high pressure, ultra high pressure, subcritical power station boiler. At 580℃, it still has high thermal strength, oxidation resistance and durable plasticity. The production process is simple and the welding performance is good, but it is sensitive to the normalizing cooling speed. Long-term use at 580℃ will result in the second kind of temper brittleness caused by the segregation of phosphorus and other impurities at grain boundary. Long – term use will also appear pearlite spherification.



12Cr1MoV Chemical Composition
Grade	The Element Max (%)
	C	Si	Mn	P	S
12Cr1MoV	0.08~0.15	0.17~0.37	0.40~0.70	0.035	0.035



Grade		12Cr1MoV Mechanical Property
	Thickness	Yield	Tensile	HB
12Cr1MoV	mm	Min Mpa	Mpa	HB
	6-50	245	490
	50-200	245	490







We have enough GB 3077 12Cr1MoV Steel Material Sheet stock, we can also customize according to your needs.
