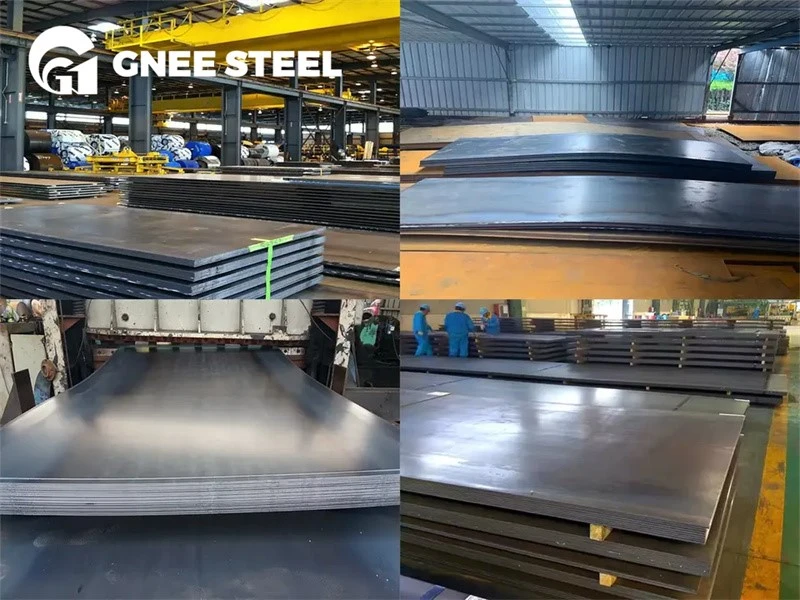

JIS G3106 SM520 Low Alloy Steel Plate
Want to know more about our products? Please contact us by email or phone.
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional jis g3106 sm520 low alloy steel plate manufacturers and suppliers in China. Welcome to wholesale customized jis g3106 sm520 low alloy steel plate at competitive price from our factory. Good service and quality products are available.
SM520 low alloy steel plate is a kind of low alloy structural steel with excellent mechanical properties and corrosion resistance, which is widely used in construction, bridge, machinery, petrochemical, ocean engineering and other fields. SM520 low alloy steel plate is widely used in construction, bridge, machinery, petrochemical, Marine engineering and other fields.
Chemical Composition and Mechanical Property
|
Grade |
Chemical Composition (%) |
||||
|
C Max |
Si Max |
Mn Max |
P Max |
S Max |
|
|
JIS G3106 SM520 |
0.20 |
0.55 |
1.6 |
0.035 |
0.035 |
|
Grade |
Mechanical Property |
||||
|
Tensile Strength (MPa) Min |
Yield Strength (MPa) Min |
% Elongation in 2 in. (50mm) min |
Impacting Test Temperature (°C) |
||
|
JIS G3106 SM520 |
520-640 |
325 |
15 |
+20, 0, -20 |
|
Additional Condition
UT (Ultrasonic examination), AR (As Hot Rolled only), TMCP (Thermal Mechanical Control Processing), N (Normalized), Q+T (Quenched and Tempered), Z Direction Test (Z15, Z25, Z35),Charpy V-Notch Impact Test, HIC test, NDT, PWHT (Simulated Post Weld Heat Treatment), NACE0175, The Third Party Test (Such as SGS Test), Coated or Shot Blasting and Painting.
Other Terms
A) Packaging Details: Standard export seaworthy packing or as required.
B) Delivery Time: 30-50 days, 7 days for stock goods.
C) Loading Port: Shanghai, Tianjin, Qingdao.
D) Offer Ability: 5000MT/Per Month.
E) MOQ: 1 Pcs.
In these fields, the SM520 low alloy steel plate is mainly used in the manufacture of large pressure vessels, reactors, towers and other key equipment. Because of its good comprehensive performance and cost performance, it can ensure the safety and stability of the equipment, so it has been widely used in these fields. The SM520 low alloy steel plate has also been widely used in high-end fields such as manufacturing aerospace spacecraft, high-speed trains, and nuclear power plants. These areas have higher requirements for materials, requiring materials with higher strength, better corrosion resistance and better high temperature resistance, and SM520 low alloy steel plate can meet these requirements. We have professional staff to provide detailed responses to your orders. If you have any questions about SM520 low alloy steel plate, please contact us.
