Nickel 825 Alloy Round Bar
Want to know more about our products? Please contact us by email or phone.
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional nickel 825 alloy round bar manufacturers and suppliers in China. Welcome to wholesale customized nickel 825 alloy round bar at competitive price from our factory. Good service and quality products are available.
Nickel 825 Alloy Round Bar Products Description
Nickel 825 Alloy Round Bar is a solid solution reinforced alloy, mainly composed of nickel, chromium, iron and other elements. Among them, the nickel content is about 63%, the chromium content is about 18%, and the iron content is about 19%. In addition, it also contains a small amount of silicon, manganese and other elements. The chemical composition of this alloy gives it excellent corrosion resistance and high temperature creep properties.
Nickel 825 Alloy Round Bar Scope Of Application
1. Aerospace
GH825 nickel alloy has excellent high temperature creep and corrosion resistance and is widely used in aerospace fields. For example, it can be used to make high-temperature components for aircraft engines, combustion chambers for rocket engines, and so on.
2. Energy sector
Because Nickel Alloy 825 Round Bar has excellent high temperature creep properties and corrosion resistance, it is also widely used in the field of energy. For example, it can be used to make fuel rods for nuclear reactors, corrosion resistant equipment in the petrochemical industry, and so on.
3. Marine field
Nickel alloy GH825 has good corrosion resistance and mechanical properties, so it is also widely used in the Marine field. For example, it can be used to make pipelines for offshore oil platforms, propellers for Marine ships, and so on.
Nickel 825 Alloy Round Bar
| % | Ni | Cr | Fe | C | Mn | Si | Cu | Mo | Al | Ti | P | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | 38 | 19.5 | Balance | 0 | 0 | 0 | 1.5 | 2.5 | 0 | 0.6 | 0 | 0 |
| Max | 46 | 23.5 | - | 0.05 | 1 | 0.5 | 3 | 3.5 | 0.2 | 1.2 | 0.020 | 0.010 |
Nickel 825 Alloy Round Bar Mechanical And Physical Properties
| Mechanical & Physical Properties | 21.1°C | 93.3°C | 148.9°C | 204.4°C | 315.6°C | 371.1°C | 426.7°C | 537.8°C | 684.9°C | 982°C |
|---|---|---|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 585 | 530 | 525 | 515 | 500 | 495 | 485 | - | - | - |
| 0.2% Yield Strength /MPa | 240 | 205 | 190 | 180 | 170 | 165 | 155 | - | - | - |
| Elongation % | 30 | - | - | - | - | - | - | - | - | - |
| Coefficient of Thermal Expansion /µm/m°C ** | - | 14.1 | 14.1 | 14.8 | 15.3 | 15.6 | 15.6 | 15.8 | 16 | - |
| Thermal Conductivity /kcal/(hr.m.°C) | 9.55 | 10.578 | 10.578 | 11.868 | 13.224 | 14.534 | 14.534 | 15.652 | 16.856 | - |
| Modulus of Elasticity / GPa | 196 | 192 | 192 | 187 | 181 | 174 | 174 | 168 | 162 | 118 |

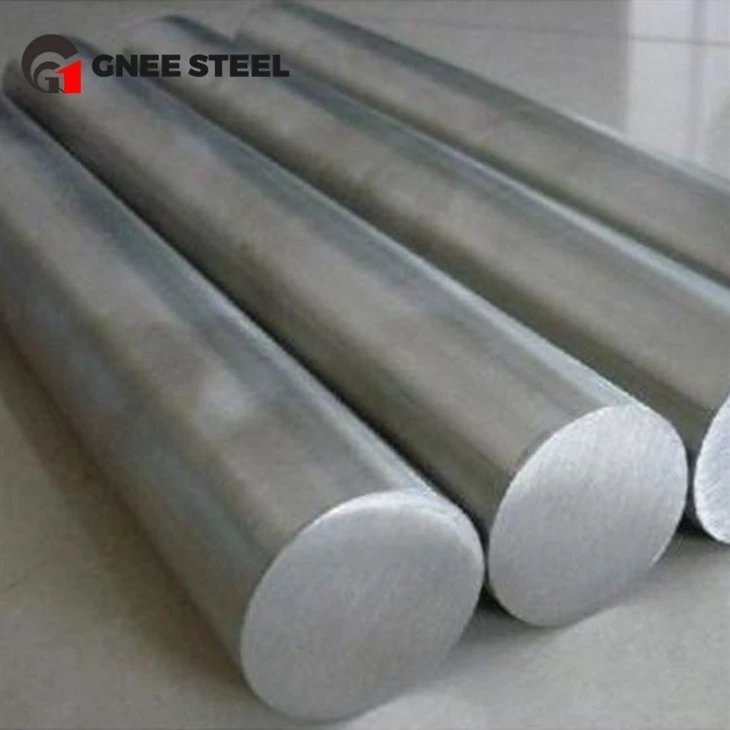

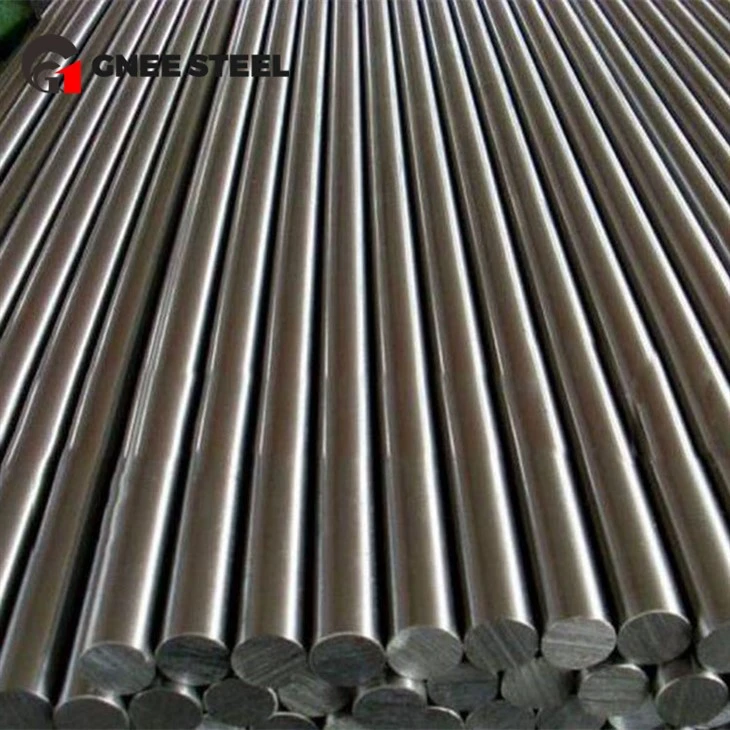

Product Image

GNEE Group Team Photo


GNEE Group Customers Visit

We have professional staff to provide detailed responses to your orders. If you have any questions about Nickel 825 Alloy Round Bar, please contact me.
