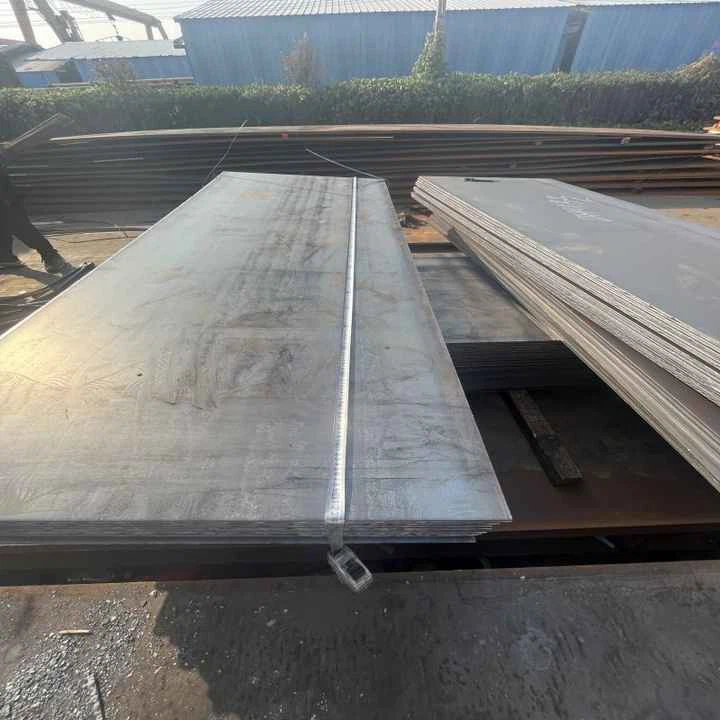

ASTM A515 Steel Plates
Want to know more about our products? Please contact us by email or phone.
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional astm a515 steel plates manufacturers and suppliers in China. Welcome to wholesale customized astm a515 steel plates at competitive price from our factory. Good service and quality products are available.
Crude oil tank shell material - ASTM A515 steel plates
GNEE supplies steel plate product of ASTM A515 spec, which is available in three grades having different strength levels: Grade 60; Grade 65; and Grade 70. ASTM A515 specification covers carbon-silicon steel plates primarily for intermediate and higher-temperature service in welded boilers and other pressure vessels.
For ASTM A515 Grade60 steel plate, max carbon content is 0.24 when thickness is below 25mm, 0.27 when thickness is between 25-50mm, 0.29 when thickness is 50-100mm, 0.31when thickness is larger than 100mm. Grade 65 and Grade 70 contains higher level of carbon.
ASTM A515 Chemical Composition
| ASTM A515 Chemical Composition | |||||
|---|---|---|---|---|---|
| Steel Grade | The Element Max (%) | ||||
| C | Mn | P | S | Si | |
| A515 grade 60 | 0.24-0.31 | 0.98 | 0.035 | 0.035 | 0.13-0.45 |
| A515 grade 65 | 0.28-0.33 | 0.98 | 0.035 | 0.035 | 0.13-0.45 |
| A515 grade 70 | 0.30-0.35 | 1.30 | 0.035 | 0.035 | 0.13-0.45 |
ASTM A515 Mechanical Property
| Steel Grade | ASTM A515 Mechanical Property | |||
|---|---|---|---|---|
| Thickness mm | Yield Min Mpa | Tensile Mpa | Elongation Min % | |
| A515 grade 60 | 200 | 220 | 415-550 | 21 |
| 50 | 25 | |||
| A515 grade 65 | 200 | 240 | 450-585 | 19 |
| 50 | 23 | |||
| A515 grade 70 | 200 | 260 | 485-620 | 17 |
| 50 | 21 | |||
ASTM A515 Equivalent Steel Grade
| Steel Grade | China | Japanese | Germany | France | Italy | Sweden | UK |
|---|---|---|---|---|---|---|---|
| ASTM A515 Grade 60 | GB 713 20g | JIS G3103 SB410 | DIN 1715 1.0425 | A48 CP,AP,FP | Fe 460-2-KW | SS21,02,01 | Gr 360,400 |
| ASTM A515 Grade 65 | GB 713 22g | JIS G3103 SB450 | DIN 1715 1.0435 | A48 CP,AP,FP | Fe 460-2-KW | SS21,02,01 | Gr 360,400 |
| ASTM A515 Grade 70 | JIS G3103 SB480 | DIN 1715 1.0844, | A48 CP,AP,FP | Fe 460-2-KW | SS21,02,01 | Gr 360,400 |
ASTM A515 standard steel plates, with their balanced strength, heat resistance, and cost-effectiveness, have become an ideal choice for medium and high-temperature pressure vessels. Their strict control over chemical composition and standardized production processes ensure the safety and long-term service capability of industrial equipment. Among similar materials, A515 strikes a balance between high-temperature pressure-bearing performance and cost-effectiveness, making it a reliable option for industries such as petrochemicals and energy.
If you want to learn more about pressure vessel steel plates, you can click the "Contact Us" button above or send an email to info@gneesteels.com. We will be happy to answer your questions.
