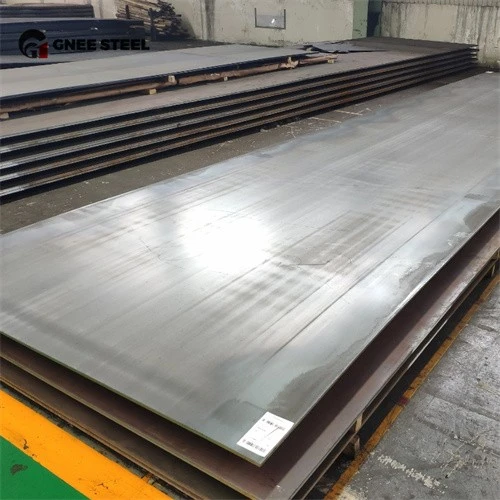

P500Q Pressure Vessel Quality (PVQ) Steel

Gnee Steel (Tianjin) Co., Ltd. is one of the most professional p500q pressure vessel quality (pvq) steel manufacturers and suppliers in China. Welcome to wholesale customized p500q pressure vessel quality (pvq) steel at competitive price from our factory. Good service and quality products are available.



P500Q Pressure Vessel Quality (PVQ) Steel



‌P500Q pressure vessel steel plate is a high-performance European standard quenched and tempered container plate that complies with the EN10028-6:2017 standard‌‌; it is usually delivered in the quenched and tempered (quenched and tempered) state, which can ensure excellent mechanical properties and welding properties.



P500Q boiler steel plate is widely used in the petroleum, chemical, power station, boiler and other industries, especially for the manufacture of high-pressure vessels and boilers and other pressure-bearing equipment, and has a wide range of applications in nuclear power plants, chemicals, oil and gas and other industries‌.



If you are satisfied with our P500Q pressure vessel plate, welcome to place an order with us. As one of the best pressure vessel quality steel manufacturers and suppliers in China, we have a large number of hot-selling products for you to choose from. For detailed chemical composition and free samples, please contact our factory immediately. We provide competitive prices and good services.





Name	Pressure Vessel (PVQ) Steel Plate
Standard	ASME,ASTM,DIN,JIS,GB,EN,etc.
Material	(ASME)ASTM:(S)A202 Grade B,(S)A203 Grade B,(S)A203 Grade D, (S)A204 Grade B,(S)A204 Grade C,(S)A285 Grade C,(S)A299 Grade A, (S)A299 Grade B,(S)A302 Grade D,(S)A387 Grade 11 Class 1, (S)A387 Grade 11 Class 2,(S)A387 Grade 22 Class 1,(S)A387 Grade 22 Class 2, (S)A515 Grade 70,(S)A515 Grade 65,(S)A516 Grade 70,(S)A516 Grade 65, (S)A517 Grade B,(S)A517 Grade E,(S)A533 Grade B,(S)A533 Grade D, (S)A553 TYPE 1,(S)A537 Class 1,(S)A537 Class 2,(S)A537 Class 3, (S)A612,(S)A662 Grade B,(S)A662 Grade C,etc. EN:16Mo3,P265GH,P295GH,P275NH,P355GH,P355N,P355NH, P460NH,P355M,P420M,P460M,P355Q,P355QL1,P460Q,P460QL1, P500Q,P500QL1,P690Q,P690QL1,etc. DIN:15Mo3,etc. JIS:SPV450,SPV490,SPV355,etc. GB:Q345R,etc.
Thickness	2mm~800mm or as customer required
Width	1m-2.2m or as customer required
Length	2m, 2.44m, 3m, 5.8m, 6m or as customers required
Packing	Standard export seaworthy package,suit for all kinds of transport, or as required.
Delivery Time	According to the quantity you ordered or upon negotiation
Price Term	EX-Working, FOB, C&F, CIF, CNF or others





♦ High tension test
♦ Low temperature impacting test
♦ Simulated post-welded heat treatment (PWHT)
♦ Ultrasonic test under EN 10160,ASTM A435,A577,A578
♦ Issued Orginal Mill test certificate under EN 10204 FORMAT 3.1/3.2
♦ Shot blasting and Painting,Cutting and welding as per end user's demands





C	Si	Mn	P	S	B	N	Cr
0.18	0.60	1.70	0.025	0.015	0.005	0.015	1.00
Cu	Mo	Nb	Ni	Ti	V	Zr
0.30	0.70	0.05	1.50	0.05	0.08	0.15





Thickness (mm)
P500Q	≤ 50	> 50 ≤ 100	> 100
Yield strength (≥Mpa)	500	480	440
	≤ 100		> 100
Tensile strength (Mpa)	590-770		540-720















We support multi-specification, multi-brand weather resistant steel plate customization, if you have P500Q pressure vessel quality (pvq) steel or other corten steel plate product customization needs, please contact us!
