Pressure Vessel Steel Sheet
Want to know more about our products? Please contact us by email or phone.
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional pressure vessel steel sheet manufacturers and suppliers in China. Welcome to wholesale customized pressure vessel steel sheet at competitive price from our factory. Good service and quality products are available.
Products Description
Pressure vessel steel plate is used to manufacture pressure vessel shell carbon steel and low alloy steel plate, it includes carbon steel, carbon manganese steel, microalloy steel, low alloy high strength steel and low temperature steel, the working temperature is generally -20℃ to 500℃, individual up to 560℃.
Pressure vessel steel plate is a special material related to the national economy and people's livelihood, and it is a short-term product of the metallurgical industry. China has formed a production system of steel plates for boilers and pressure vessels with a certain production scale, increasing specifications and gradually improving quality.
ASTM Standard Stainless Steel Pressure Vessel Grades
|
Standard |
Grade |
|
ASTM/ASME |
A516/A516M (S)A516Gr55,(S)A516Gr60,(S)A516Gr65,(S) A516Gr70 A515/A515M (S)A515Gr55,(S)A515Gr60,(S)A515Gr65,(S) A515Gr70 A537/A537M (S)A537CL1, (S)A537CL2, (S)A537CL3 A204/A204M A204GrA,A204GrB,A204GrC A387/A387MSA387Gr11CL1,SA387Gr11CL2,SA387Gr12CL1, SA387Gr12CL2,SA387Gr22CL1,SA387Gr22CL2(HIC) A299/A299M SA299GrA,SA299GrB A285/A285M A285GrA,A285GrB,A285GrC A533/A533M SA533GrACL1/CL2/CL3/CL4,SA533GrB A203/A203M SA203GrE,SA203GrD A302/A302M SA302GrC |
EN10028 Standard Stainless Pressure Vessel Grades
|
Standard |
Grade |
|
EN10028 |
P235GH,P265GH,P295GH,P355GH,16Mo3 P275N,P275NH,P275NL1,P275NL2,P355N,P355NH,P355NL1,P355NL2 P460N,P460NH,P460NL1,P460NL2 P355Q,P355QH,P355QL1,P355QL2,P460Q,P460QH,P460QL1,P460QL2 P500Q,P500QH,P500QL1,P500QL2,P690Q,P690QH,P690QL1,P690QL2 P355M,P355ML1,P355ML2,P420M,P420ML1,P420ML2 P460M,P460ML1,P460ML2 |
DIN 17155 Standard Pressure Vessel Sheet Grades
|
Standard |
Grade |
|
DIN 17155 |
HI,HII,17Mn4,19Mn6,15Mo3,13CrMo44,10CrMo910 |
JIS Standard Boiler Steel Plate Properties Grade
|
Standard |
Grade |
|
JIS |
SB410,SB450,SB480,SB450M,SB480M SPV235,SPV315,SPV355,SPV410,SPV450,SPV490 |
GB Standard Steel Boiler Plate Grade
|
Standard |
Grade |
|
GB |
GB713Q245R,Q345R,Q370R,18MnMoNbR,13MnNiMoR, 15CrMoR,14Cr1MoR,12Cr2Mo1R,12Cr1MoVR GB3531 16MnDR,15MnNiDR,09MnNiDR |
Products Features
The characteristics of pressure vessel steel plate are as follows:
High strength. Pressure vessel steel plate requires high strength to ensure that deformation, rupture and other problems will not occur under high pressure.
Good toughness. Because it may be subjected to impact forces and vibration forces in different directions during use, it is necessary to have enough toughness to ensure that it is not easy to break under the external action.
Good corrosion resistance. Pressure vessel steel plate requires good corrosion resistance to avoid problems such as corrosion and damage during use.
Good heat resistance. Because in some special working conditions, the vessel will be affected by high temperature, so the pressure vessel steel plate heat resistance requirements are high.

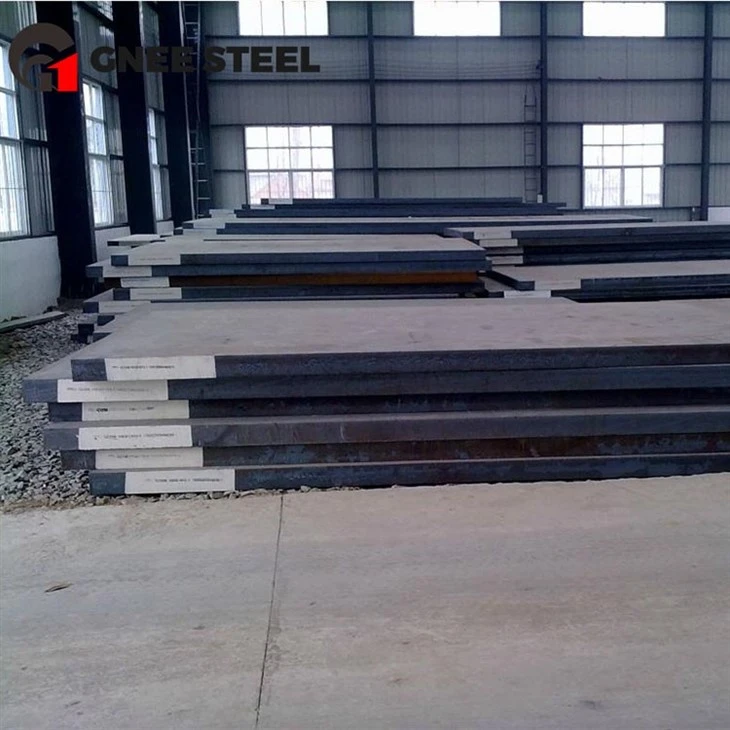

Product Image
GNEE Group Team Photo
GNEE Group Customers Visit
We support the customization of Pressure Vessel Steel Sheet products, if necessary, please contact me, or leave your contact information.
Hot Tags: pressure vessel steel sheet, China pressure vessel steel sheet manufacturers, factory, pressure vessel steel plate for coal storage, pressure vessel steel plate for standards, pressure vessel steel plate for solid waste storage, pressure vessel steel plate for waste to energy, pressure vessel steel plate for branding, pressure vessel steel plate for testing
