ASTM Grade DH32 offshore steel plate
Want to know more about our products? Please contact us by email or phone.
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional astm grade dh32 offshore steel plate manufacturers and suppliers in China. Welcome to wholesale customized astm grade dh32 offshore steel plate at competitive price from our factory. Good service and quality products are available.
ASTM DH32 Steel Plate Products Description
ASTM Grade DH32 offshore steel plate is not only a high tensile strength steel, but also a hull structural steel with good toughness, higher strength, strong corrosion resistance, processability and good welding performance. Shipbuilding steel grade DH32 is used for shipbuilding and oil platforms. It is approved by ABS, DNV, GL, BV, LR, NK, RINA and other classification societies and can be used to manufacture the hull structure of ships under 10,000 tons.
ASTM A131 Grade DH32 weldable structural steel plates are corrosion-resistant steels suitable for manufacturing ship hulls, decks, offshore platforms, and marine port construction.
ASTM DH32 Ship Hull Structure Chemical Composition
| Grade |
C max |
Si max |
Mn |
P max |
S max |
Als min |
Ti max |
Cu max |
Cr |
Ni |
Mo |
|
DH32 |
0.18 |
0.50 |
0.90-1.60 |
0.035 |
0.035 |
0.015 |
0.02 |
0.35 |
0.20 |
0.40 |
0.08 |
Heat analysis of ASTM A131 steel grade DH32 ship plate shall be used to determine the required chemical composition for carbon, manganese, phosphorus, sulfur, silicon, vanadium, aluminum, titanium, nickel, chromium, molybdenum, silicon, copper, nickel, and niobium.
ASTM DH32 Shipbuilding Mild Steel Plate Mechanical Properties
| Grade |
Rm |
Re(MPa) min |
A% min |
Akv/J min |
||||||
|
DH32 |
440-570 |
315 |
22 |
E.T °C |
Thickness (mm) |
|||||
|
-20 |
≤ 50 |
>50-70 |
>70-100 |
|||||||
|
L |
C |
L |
C |
L |
C |
|||||
|
31 |
22 |
38 |
26 |
46 |
31 |
|||||
ASTM DH32 shipbuilding steel plate Condition Of Delivery
Grade |
Fine grains elements |
category |
The thickness of steel |
|||||
|
≤ 12 |
>12.5-20 |
>20-25 |
>25-35 |
>35-50 |
>50-100 |
|||
|
DH32 |
Nb+V or V |
Plate/ |
A(50) |
N(50),CR(50),TM(50) |
N(50),CR(25),TM(50) |
|||
|
Profile steel |
N(50),CR(50),TM(50),AR*(25) |
- |
||||||
|
Al or Al+Ti |
Plate/ |
A(50) |
AR*(25) |
- |
||||
|
N(50),CR(50),TM(50) |
N(50),CR(25),TM(50) |
|||||||
|
Profile steel |
A(50) |
N(50),CR(50),TM(50),AR*(25) |
- |
|||||
ASTM DH32 Offshore Steel Plate Product Specifications
Thickness: 4mm to 260mm,
Width: 1200mm to 4000mm
Length: 3000mm to 18000mm.

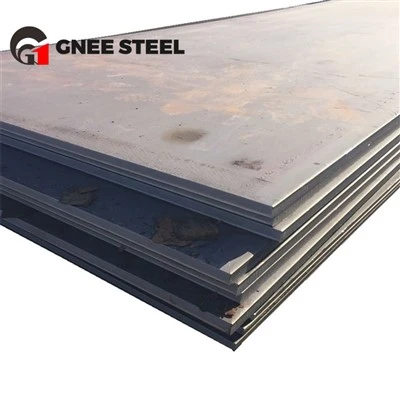

ASTM DH32 Structural Steel Plate Product Photos
Our Team And Exhibition Photo
Customers Photos
We support multi-specification, multi-specification steel plate customization, if you have ASTM Grade DH32 offshore steel plate or other ship plate product customization needs, please contact me.
