Three-Phase Box-Type Pad Mount Substation Transformers
Want to know more about our products? Please contact us by email or phone.
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional three-phase box-type pad mount substation transformers manufacturers and suppliers in China. Welcome to wholesale customized three-phase box-type pad mount substation transformers at competitive price from our factory. Good service and quality products are available.

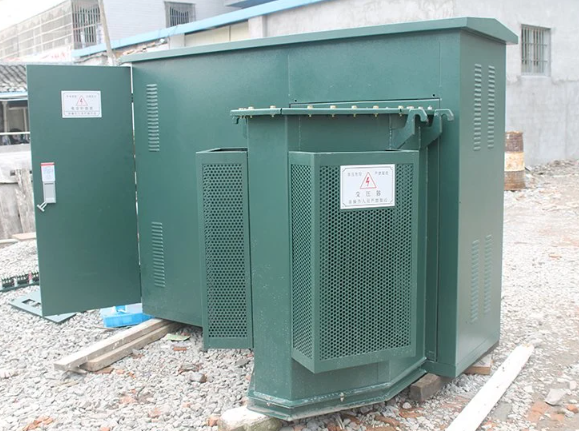

GNEE Steel electrical transformer substation
Box-type substation transformers is also called prefabricated substation or prefabricated substation. It is a high-voltage switchgear, distribution transformer and low-voltage power distribution device, which organically combines the functions of transformer step-down and low-voltage power distribution, and It is installed in a moisture-proof, rust-proof, dust-proof, rodent-proof, fire-proof, anti-theft, Heat-insulated, fully enclosed, movable steel structure box.

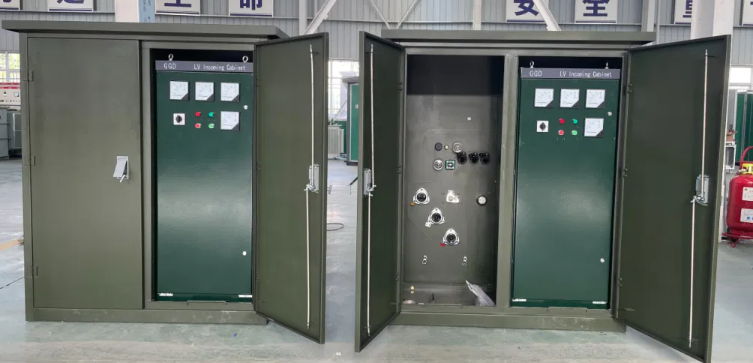

electrical substation transformer
Box-Type Substation Transformers Parameters
|
Rated Capacity |
100kVA |
|
High Voltage |
10/11kV |
|
Low Voltage |
0.4kV |
|
Impedance Voltage |
4% |
|
No-load Loss |
0.4kW |
|
Load Loss |
1.57kW |
|
No-load Current |
0.7% |
|
Frequency |
50/60Hz |
|
Connection Group |
Yyn0/Dyn11 |
|
Cooling Method |
AN/AF |
Box-Type Pad Mount Substation Transformers Features
Enclosure Design:
The transformer is housed within a sturdy and weather-resistant enclosure, typically made of steel or aluminum. This enclosure protects the transformer from environmental conditions such as rain, snow, and sunlight.
Pad Mounting:
The transformer is mounted on a concrete pad at ground level, making it easily accessible for maintenance and minimizing the impact on the surrounding landscape. This type of installation is common in residential areas.
Three-Phase Configuration:
Box-type pad-mount transformers are designed to handle three-phase electrical systems, providing a balanced and efficient power distribution solution.
Voltage Ratings:
These transformers are available in various voltage ratings to meet specific application requirements. They can be designed for step-up or step-down voltage transformations based on the needs of the electrical grid.
Compact Design:
The box-type enclosure allows for a compact design, making it suitable for locations where space is limited. The compact size also contributes to easier integration into residential or commercial areas.
box-type transformer product display
