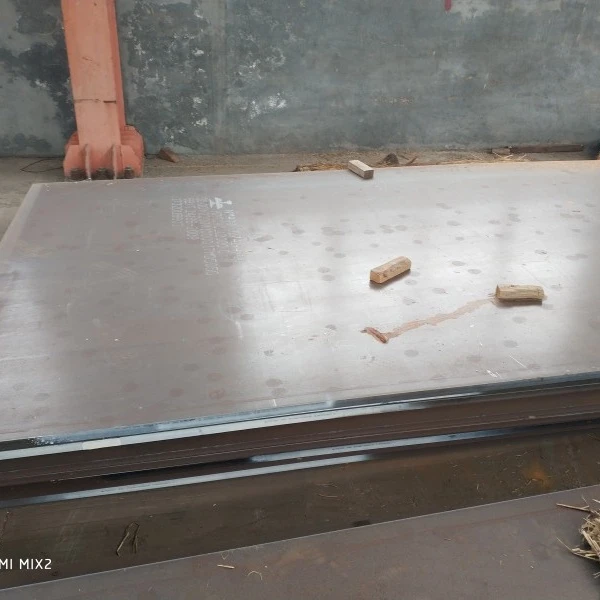

NM 500 Wear Plate
Want to know more about our products? Please contact us by email or phone.
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional nm 500 wear plate manufacturers and suppliers in China. Welcome to wholesale customized nm 500 wear plate at competitive price from our factory. Good service and quality products are available.
NM 500 Wear Plate: The Ultimate Solution for Extreme Wear Resistance
NM 500 Wear Plate is renowned for its exceptional hardness and toughness, making it the ideal material for applications that experience high levels of wear. Whether you're involved in heavy machinery, mining, or construction, understanding the advantages and applications of NM 500 can help you make informed decisions to extend equipment life and reduce maintenance costs. In this article, we will explore the features, applications, and differences between wear plates and NM plates, as well as the benefits of choosing NM 500 Wear Plate for your most demanding projects.
What is NM 500 Wear Plate?
NM 500 is an abrasion-resistant steel plate with a nominal Brinell hardness of 500 HBW. This steel plate is specifically designed to withstand extreme wear and tear, offering a combination of high hardness, strength, and toughness that makes it suitable for a wide range of applications. Suppliered by GNEE STEEL, NM 500 is engineered to perform in the harshest environments, ensuring superior performance in equipment that is exposed to heavy wear.
Key properties include:
Brinell hardness: 500 HBW, providing exceptional wear resistance.
Fine-grained structure: Contributes to higher strength and toughness.
Weldability and bendability: Allows for easier processing and shaping.
NM 500 is designed to perform in industries such as mining, construction, quarrying, and material handling, where parts are subject to high levels of friction and impact.
NM 500 Chemical Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.28 - 0.40 |
| Manganese (Mn) | 0.80 - 1.60 |
| Silicon (Si) | ≤ 0.60 |
| Phosphorus (P) | ≤ 0.025 |
| Sulfur (S) | ≤ 0.01 |
| Chromium (Cr) | 0.40 - 1.00 |
| Nickel (Ni) | ≤ 0.50 |
| Boron (B) | ≤ 0.005 |
| Molybdenum (Mo) | ≤ 0.50 |
| Vanadium (V) | ≤ 0.15 |
NM 500 Mechanical Properties
| Property | Value |
|---|---|
| Yield Strength (RP0.2) | ≥ 1,240 MPa |
| Tensile Strength (Rm) | 1,400 - 1,700 MPa |
| Elongation (A5) | ~10% |
| Reduction of Area (Z) | ~30% |
| Impact Toughness (KV) | ≥ 27 J at -40°C |
| Hardness | 450 HBW |
| Modulus of Elasticity | ~210 GPa |
| Poisson's Ratio | ~0.3 |
NM 500 Physical Properties
| Property | Value |
|---|---|
| Density | ~7.85 g/cm³ |
| Yield Strength | ≥ 1,240 MPa |
| Tensile Strength | 1,400 - 1,700 MPa |
| Elongation | ~10% |
| Impact Toughness | ≥ 27 J at -40°C |
| Thermal Conductivity | ~45 W/m·K |
| Modulus of Elasticity | ~210 GPa |
| Hardness | 450 HBW |
NM 500 Steel Plate Dimensions
| Thickness Range | 4 mm to 80 mm |
|---|---|
| Width Range | Up to 3350 mm |
| Length Range | Up to 14630 mm |
NM 500 Equivalent Material
| Material | Description |
|---|---|
| NM500 | Chinese steel grade with high strength and wear resistance, often used as a substitute for NM 500. |
| JFE-EH500 | Japanese equivalent known for wear resistance and toughness. |
| Dillidur 500V | German equivalent offering comparable wear resistance. |
| Rockstar 500 | Indian steel grade gaining popularity as a cost-effective alternative to NM 500. |
Wear Resistant Plates NM 500 Fabrication Guidelines
Welding:
Preheating is recommended for thicker plates.
Use low-hydrogen electrodes.
Suitable welding methods: SMAW, GMAW, and FCAW.
Cutting:
Plasma cutting and laser cutting provide the best results.
Thermal cutting requires proper edge preparation.
Bending:
Minimum recommended bending radius: 3 times the plate thickness.
Machining:
Carbide tools are recommended for drilling and milling.
Key Features of NM 500 Wear Plate
High Hardness: With a Brinell hardness of 500 HBW, NM 500 excels in applications where wear resistance is a primary requirement.
Weldable and Bendable: Despite its high hardness, NM 500 is both weldable and bendable, making it versatile for various fabrication processes.
Impact Resistance: NM 500 can withstand high-impact forces, ensuring durability in heavy-duty applications.
Thickness Range: Available in thicknesses from 4.0 to 80mm, ensuring flexibility for different projects.
Good Toughness: Despite its high hardness, NM 500 maintains a high level of toughness, making it resistant to cracks and fractures under pressure.
Applications of NM 500 Wear Plate
NM 500 is used extensively in industries where machinery and equipment face severe abrasion. Common applications include:
Heavy Machinery: Bucket liners, truck bodies, blades, and crushers in mining, construction, and material handling.
Mining Equipment: Excavators, loaders, and other machinery subjected to continuous abrasion.
Construction: Dump truck bodies, bulldozers, and conveyors that need to withstand high wear conditions.
Quarrying: Equipment parts exposed to rock impacts, such as feeders, elevators, and hoppers.
This wear-resistant steel is widely used to protect machinery parts that undergo friction and impact, helping to extend the life of expensive equipment and reduce the frequency of repairs.
What is the Difference Between Wear Plate and NM Plate?
Wear Plate:
A general term referring to steel plates designed to resist abrasion. Wear plates can vary widely in terms of hardness, strength, and toughness. Typically, they have a hardness range of 300-500 HBW, making them suitable for applications where wear resistance is needed but may not provide the extreme toughness of NM 500.
NM Plate:
NM plates are specifically engineered by SSAB for applications requiring extreme wear resistance. NM 500 stands out due to its high hardness, strength, and toughness, all achieved through a patented quenching process. Unlike some general wear plates, NM 500 offers enhanced impact resistance and weldability, making it ideal for industries with high-abrasion demands, such as mining and construction.
The main difference lies in NM 500's ability to combine high hardness with excellent toughness-qualities that make it suitable for more demanding environments than regular wear plates.
Why Choose NM 500 Wear Plate Over Other Options?
Longer Equipment Life: Due to its superior wear resistance, NM 500 can significantly extend the life of machinery and components. This means fewer replacements and less downtime, helping to keep operations running smoothly over a longer period.
Lower Maintenance Costs: The durability of NM 500 reduces the frequency of repairs and replacements. With less wear and tear, machinery spends more time in operation, lowering maintenance costs and reducing the need for frequent downtime.
High Cost-Effectiveness: Even though NM 500 is an investment upfront, its extended lifespan and durability provide excellent long-term value. The savings on repairs, downtime, and part replacements make it a cost-effective choice in the long run.
Improved Productivity: With fewer maintenance issues, your equipment can operate more efficiently. This leads to higher productivity, as machines can continue working without the interruptions caused by repairs or downtime.
Flexibility in Fabrication: NM 500 is easy to weld and bend, making it highly adaptable for custom applications. Whether you're modifying or creating new parts, NM 500 is suitable for various fabrication processes, offering flexibility without compromising on wear resistance.
Comparison: NM 500 vs. Other Wear Plates
When it comes to choosing a wear-resistant material, you have many options, but NM 500 stands out for several reasons:
NM 500 vs. Regular Wear Plates: Regular wear plates may not offer the same level of toughness or hardness. While standard wear plates can handle general abrasion, NM 500 excels in extreme conditions where both high hardness and high toughness are required. It can withstand severe impacts and continues to perform well even under intense stress.
NM 500 vs. NM 400 and 450: While NM 400 and 450 are also excellent wear-resistant materials, NM 500 is ideal for applications that require a higher level of wear resistance. NM 500 offers increased hardness (500 HBW) compared to the 400 (400 HBW) and 450 (450 HBW) grades, making it the best choice for industries like mining, quarrying, and construction, where equipment faces severe abrasion and impact.
NM 500 vs. NM 550 and 600: While NM 550 and NM 600 are even harder and offer superior wear resistance, NM 500 strikes a balance between hardness and toughness. It provides excellent wear resistance while maintaining better weldability and bendability than the higher hardness grades, making it a more versatile option for many applications.
