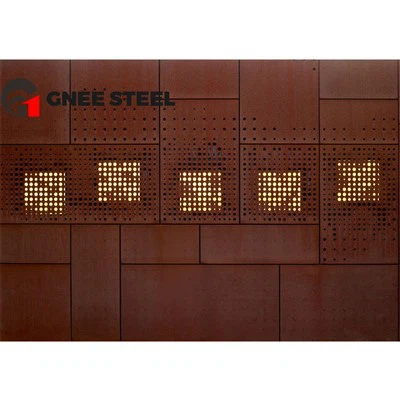

SMA400BW SMA400CW corten sheet

---

SMA400BW, SMA400CW weathering steel, the same belongs to the Japanese standard weathering steel plate, the implementation of JIS G3114-2004 standard, SMA400BW, SMA400CW welding corten steel with rust, corrosion and other characteristics, so that the structure of the parts of the corrosion resistance to prolong the life of the labor-saving energy.

Steel Type	Standard	Country Code	C(%)	V(%)	Si(%)	Mn(%)	P(%)	S(%)	Cr(%)	Ni(%)	Cu(%)
SMA400BW	4269	CNS	≦0.18		0.15-0.65	≦1.25	≦0.035	≦0.035	0.45-0.75	0.05-0.30	0.30-0.90
SMA400BW	G3114	JIS	≦0.18		0.15-0.65	≦1.25	≦0.035	≦0.035	0.45-0.75	0.05-0.30	0.30-0.90
A588Gr.B	A588	ASTM	≦0.20	0.01-0.10	0.15-0.50	0.75-1.35	≦0.04	≦0.05	0.40-0.70	≦0.50	0.20-0.40

Steel Type	Yield stress (Mpa)	Tensile stress (Mpa)	Elongation (%)	Thick (mm)
SMA400BW	≧345	400-540	≧23	≦16
SMA400BW	≧345	400-540	≧23	≦16
A588Gr.B	≧345	≧485	≧21	≦100

Steel Type	Standard	Country Code	C(%)	V(%)	Si(%)	Mn(%)	P(%)	S(%)	Cr(%)	Ni(%)	Cu(%)
SMA400CW	4269	CNS	≦0.18		0.15-0.65	≦1.25	≦0.035	≦0.035	0.45-0.75	0.05-0.30	0.30-0.50
SMA400CW	G3114	JIS	≦0.18		0.15-0.65	≦1.25	≦0.035	≦0.035	0.45-0.75	0.05-0.30	0.30-0.50
A588Gr.B	A588	ASTM	≦0.20	0.01-0.10	0.15-0.50	0.75-1.35	≦0.04	≦0.05	0.40-0.70	≦0.50	0.20-0.40

Steel Type	Yield stress (Mpa)	Tensile stress (Mpa)	Elongation (%)	Thick (mm)
SMA400CW	≧245	400-540	≧23	≦16
SMA400CW	≧245	400-540	≧23	≦16
A588Gr.B	≧345	≧485	≧21	≦100

Weathering steel plate specifications are usually between 1.5MM-60MM, individual can reach 80MM, weathering steel is usually divided into 4 specifications: thin plate thickness of 1.5MM-4MM, in the plate 4MM-20MM, thick plate 20MM-60MM, special thick plate 60MM-80MM, the width of the conventional 1.18M, 1.25M, 1.26M, 1.5M, 2M, etc. (different manufacturers provide different specifications for reference only). (Different manufacturers have different specifications, GNEE provides, for reference only)

We have more than 15 years of production and export experience. If you have any customization needs for SMA400BW SMA400CW corten sheet or other weathering steel grades, please contact me.
