Are you sourcing high-quality steel for boiler or pressure vessel projects? A/SA 283 Gr.C steel is a top choice for low-to-moderate pressure applications, and you've come to the right manufacturer.
As a leading Chinese supplier with 18+ years of experience, GNEE produces ASME-certified A/SA 283 Gr.C plates specifically engineered for boilers and pressure vessels, ensuring compliance with global safety standards and reliable performance.
In this guide, we'll break down why this grade excels in these critical applications, its technical requirements, and how GNEE's products meet your project needs.
Why A/SA 283 Gr.C Steel Is Suitable for Boilers & Pressure Vessels
A/SA 283 Gr.C steel is purpose-designed for boiler and pressure vessel service, with core properties that address the unique demands of these applications-including temperature stability, pressure resistance, and fabricability.
Key reasons it stands out:
- Controlled Strength-to-Ductility Balance: With a minimum yield strength of 30 ksi (207 MPa) and 25% elongation, it resists permanent deformation under pressure while remaining flexible enough to withstand thermal expansion (critical for boiler cyclic heating).
- ASME Code Compliance: As an SA 283 Grade C material (the "S" denotes ASME BPVC certification), it meets the strict quality requirements of ASME Section II-mandatory for pressure vessels used in oil, gas, and power industries.
- Excellent Weldability: Its low carbon content (max 0.24%) and controlled sulfur (max 0.040%) minimize weld cracking, a critical factor for pressure vessel fabrication (where weld integrity directly impacts safety).

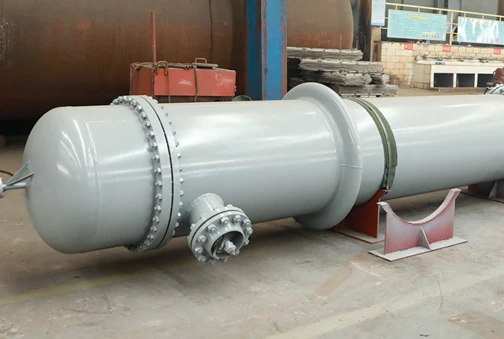

A/SA 283 Gr.C steel plates fabricated into a low-pressure storage vessel for industrial steam systems
For boiler and pressure vessel projects requiring certified A/SA 283 Gr.C steel, check our [A/SA 283 Gr.C product page] to view available thicknesses (6mm–150mm) and request mill test reports (MTRs).
A/SA 283 Gr.C Steel Specs for Boilers & Pressure Vessels (ASME Compliance)
To ensure safety and performance in boiler/pressure vessel service, A/SA 283 Gr.C must meet strict ASME BPVC Section II specifications.
Below are the critical technical requirements for these applications:
| Specification Category | Requirement for Boilers & Pressure Vessels | Purpose for Critical Service |
|---|---|---|
| Chemical Composition (Max) | C: 0.24%, Mn: 0.95%, P: 0.040%, S: 0.040% | Prevents brittleness at high temperatures and ensures weld integrity |
| Mechanical Properties (Min) | Yield Strength: 30 ksi (207 MPa), Tensile Strength: 55 ksi (379 MPa), Elongation: 25% | Withstands operating pressure without failure or permanent deformation |
| Temperature Range | -20°F to 650°F (-29°C to 343°C) | Maintains strength and ductility in typical boiler/pressure vessel operating temps |
| NDT Requirements | Ultrasonic Testing (UT) per ASME SA-578 Level B | Detects internal defects (e.g., inclusions) that could lead to pressure leaks |
| Heat Treatment | Normalized (optional for plates >1.5in thick) | Ensures uniform grain structure for consistent pressure resistance |
Note: For pressure vessels operating above 650°F (343°C), consult GNEE's technical team-we can recommend upgraded grades (e.g., A516 Grade 70) while maintaining cost efficiency.
A/SA 283 Gr.C Steel Applications in Boiler & Pressure Vessel Sectors
A/SA 283 Gr.C steel is not a "one-size-fits-all" solution-it excels in specific boiler and pressure vessel sub-applications where low-to-moderate pressure and temperature demands align with its properties.
Common applications include:
- Low-Pressure Steam Boilers: Used for auxiliary boilers in factories or commercial buildings (operating pressure ≤150 psi / 10.3 bar), where its ductility handles thermal cycling.
- Storage Vessels: Ideal for storing non-hazardous fluids (e.g., water, mild chemicals) at ambient to moderate temperatures (e.g., industrial water tanks).
- Boiler Economizers: Serves as the outer shell for economizers (heat recovery systems), where its weldability simplifies assembly with heat exchanger tubes.
- Pressure Vessel Supports: Used for structural components (e.g., skirts, lugs) of high-pressure vessels, where it provides stability without requiring the same strength as the vessel's main body.
A/SA 283 Gr.C Steel for Boiler
For custom applications (e.g., non-standard vessel sizes), GNEE offers cut-to-length A/SA 283 Gr.C plates with fast turnaround-contact us to discuss your project's dimensions.
GNEE's Quality Assurance for A/SA 283 Gr.C Steel in Boiler/Pressure Vessel Use
When sourcing A/SA 283 Gr.C for boilers or pressure vessels, quality is non-negotiable.
GNEE implements a 4-step quality control process to ensure every plate meets ASME standards and your project's safety requirements:
- Raw Material Inspection: All steel billets are tested for chemical composition (via spectrometry) to ensure compliance with A/SA 283 Gr.C limits before rolling.
- In-Process Testing: Plates undergo thickness and flatness checks during rolling, with tensile and impact tests conducted on sample coupons (per ASME SA-370).
- Nondestructive Testing (NDT): 100% ultrasonic testing (UT) is performed on plates >6mm thick to detect internal defects, plus visual inspection for surface flaws.
- Certification Documentation: Each order includes a full ASME-compliant MTR, traceable to the heat number, and a certificate of compliance (CoC) for customs and project approval.
This process ensures your A/SA 283 Gr.C steel not only meets but exceeds the safety margins required for boiler and pressure vessel service.
Conclusion
For boiler and pressure vessel projects requiring reliable, ASME-certified steel for low-to-moderate pressure applications, A/SA 283 Gr.C steel is an optimal choice-offering the right balance of strength, ductility, and weldability.
As a trusted manufacturer, GNEE delivers this grade with strict quality control, fast shipping (7-day lead time for standard sizes), and competitive factory pricing, making it easier to meet project deadlines and budgets.
Whether you need A/SA 283 Gr.C plates for a small auxiliary boiler or large storage vessel, our team provides technical support to validate your material choice and ensure compliance with local safety codes. Don't compromise on safety-choose certified A/SA 283 Gr.C steel from a manufacturer with a proven track record in boiler and pressure vessel applications.
Contact us today to get a free quote for A/SA 283 Gr.C steel and request a sample MTR-let's ensure your boiler or pressure vessel project is safe, compliant, and successful.
