What a Lamination Core Is and Why It Uses Thin Sheets
A lamination core is the magnetic circuit of a transformer, inductor, or electric machine assembled from many thin, individually insulated steel sheets stacked face to face, instead of being cut or cast as one solid block. The construction is a direct answer to electromagnetic loss. When an alternating flux threads a conductive steel body, it induces circulating currents inside that body, and the resulting eddy-current loss grows with the square of the conductive path thickness and with the square of frequency. Halving the sheet thickness reduces that component to roughly one quarter. Adding 1.0-3.5% silicon raises the electrical resistivity of the steel, and a micrometre-scale insulating coating between successive sheets breaks the current loops at every interface. A well-built core couples a stacking factor of 0.94-0.97, an operating flux density of 1.5-1.8 T and a total specific loss that a transformer designer can remove through the cooling system.
Three quantities govern every commercial discussion of a lamination core: specific total loss (W/kg at a stated flux density and frequency), magnetic induction at a stated magnetising force (for example B at 800 A/m, written B8, or B at 5000 A/m, written B50), and geometric quality of the stack. Loss determines temperature rise and efficiency class; induction determines how much copper and iron are needed for a given power rating; geometric quality determines noise, exciting current and the accuracy of the finished assembly. A buyer who evaluates only the price per tonne is effectively leaving the last two parameters uncontrolled.
Core Materials: Grain-Oriented and Non-Oriented Electrical Steel
Transformer cores almost always use grain-oriented (GO) electrical steel, produced by cold rolling with a heavy final reduction and a high-temperature secondary recrystallisation anneal so that the easy magnetisation axis, the cube-on-edge [110]<001> orientation, aligns with the rolling direction. The result is low loss in the rolling direction and a strongly anisotropic sheet: loss and exciting current rise sharply when flux is driven at 90 degrees to the rolling direction, which is why mitred or step-lap corner joints and careful nesting are used. Rotating machines, chokes and small EI transformers that carry flux in several directions use non-oriented (NO) electrical steel, where the silicon and aluminium content and the recrystallisation texture are balanced to give acceptable loss in all directions in the plane of the sheet.
Thickness is the second selection variable. Grain-oriented material is normally supplied at 0.23 mm, 0.27 mm, 0.30 mm and 0.35 mm; non-oriented material at 0.35 mm, 0.50 mm and 0.65 mm. Thin gauge lowers eddy-current loss but also lowers stacking factor and raises the number of shear or punching operations per tonne, so the economic optimum depends on the operating frequency and on labour cost in the core-building shop. At 50 Hz the usual choice is 0.27-0.35 mm GO; at 400 Hz or above, 0.20 mm and thinner grades or ferrite alternatives are considered.
Standard Designations and Typical Magnetic Properties
Chinese grain-oriented and non-oriented electrical steels are specified in the GB/T 2521 series, with the grain-oriented part covering the fully processed product used for wound and stacked transformer cores. Japanese equivalents appear in JIS C 2553 (grain-oriented) and JIS C 2552 (non-oriented), the American equivalent for grain-oriented flat-rolled silicon steel is ASTM A876, and the magnetic test methods are described in IEC 60404-2 for the Epstein frame and IEC 60404-3 for the single-sheet tester. A grade designation conventionally encodes thickness in hundredths of a millimetre followed by a loss figure, so a 0.30 mm grade with a guaranteed maximum specific total loss of 1.20 W/kg at 1.7 T and 50 Hz appears in catalogues as 30Q120 or its national equivalent. The table below gives the range a purchaser should expect to see quoted; exact guaranteed values must always be taken from the mill's inspection certificate for the specific grade ordered.
| Parameter | Non-oriented (NO) | Grain-oriented (GO) | Thin-gauge GO / high-induction |
|---|---|---|---|
| Silicon content, % | 0.5-3.2 | 2.9-3.4 | 2.9-3.4 with tighter impurity control |
| Nominal thickness, mm | 0.35 / 0.50 / 0.65 | 0.27 / 0.30 / 0.35 | 0.18 / 0.20 / 0.23 |
| Specific total loss loss at 1.5 T and 50 Hz, W/kg | 2.6-7.0 | not the reference point | not the reference point |
| Specific total loss loss at 1.7 T and 50 Hz, W/kg | 4.5-9.5 | 1.05-1.60 | 0.75-1.10 |
| Induction B8, T | 1.60-1.75 | 1.80-1.92 | 1.88-1.97 |
| Anisotropy in plane | low to moderate | high (rolling direction preferred) | high, with domain-refined surface |
| Typical duty | motors, generators, EI chokes | distribution and power transformers | large power transformers, mobile units |
The anisotropy column is not academic. In a three-limb core the flux in the yoke turns through 90 degrees, and if the yoke laminations are cut with the rolling direction running along the limb, the yoke operates on the hard axis. Nesting the yoke strips with the rolling direction following the flux path, and using 45-degree mitred corners, keeps the worst-case angle nearer 45 degrees instead of 90 degrees and recovers a measurable part of the loss that a naive layout would waste.
Lamination Geometry, Joints and Stacking Factor

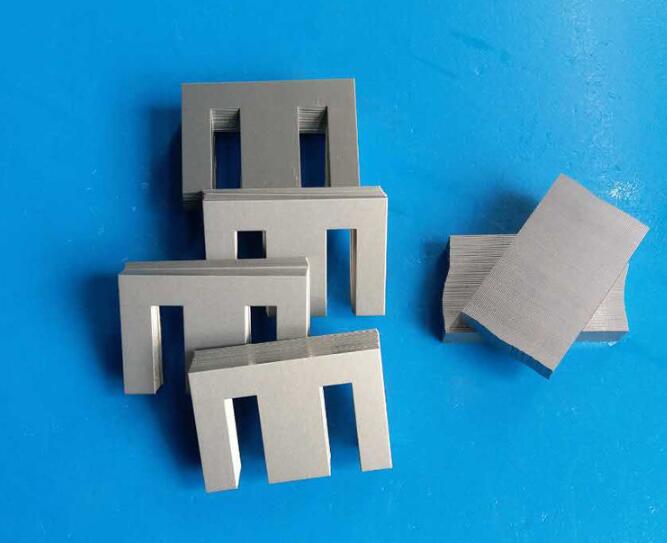

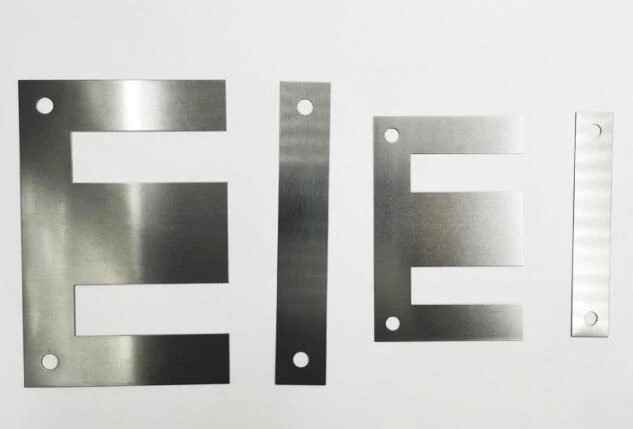

Small cores are normally built from EI, UI, EE or C-type stampings, where the centre limb carries the winding and the outer limbs close the circuit. Large cores use stacked rectangular sheets with mitred or step-lap joints at the corners. A step-lap joint staggers the butt gaps of successive layers over two, three or five steps, so that no single air gap lines up through the full stack; the effective gap reluctance drops and both exciting current and audible noise fall. Because an air gap in the magnetic path has an effective length larger than its physical length by the fringing factor, the joint quality shows up directly in the no-load current measurement.
Stacking factor is the ratio of net steel cross-section to the gross occupied volume. With 0.30 mm grain-oriented sheet and a standard coating it typically lands between 0.95 and 0.97; with 0.23 mm sheet it falls slightly; with heavy inorganic coatings or with adhesive-bonded stacks it may drop to 0.93-0.95. Stacking factor should be declared at a stated clamping pressure, because the figure is measured under load, and a value quoted without pressure is not comparable between suppliers.
| Surface condition | Typical coating thickness per side, um | Stacking factor | Annealing response |
|---|---|---|---|
| Bare, no coating | 0 | 0.97-0.98 | not applicable |
| Thin organic resin | 1-3 | 0.95-0.97 | coating burns off |
| Half-organic (inorganic plus resin) | 2-5 | 0.94-0.96 | survives stress-relief anneal |
| Inorganic ceramic (C5 type) | 3-6 | 0.93-0.96 | survives anneal, high interlayer resistance |
| Self-bonding adhesive | 4-8 | 0.92-0.95 | not intended for anneal after bonding |
Blanking, Burr Control and Stress-Relief Annealing
Shearing and punching plastically deform a narrow band along every cut edge. That deformation distorts the crystal orientation, raises local loss, and can reduce the induction of the affected zone. Industry practice is to keep burr height at or below 0.02-0.05 mm depending on sheet thickness, to keep punch and die clearance in the range of roughly 5-10% of thickness, and to control tool wear by counting strokes rather than by inspecting the finished part. For grain-oriented sheet the cut-edge damage zone extends on the order of a few tenths of a millimetre, which is why narrow strips and small EI shapes show a proportionally larger loss penalty than wide transformer sheets.
Stress-relief annealing at approximately 750-820 degrees C in a controlled atmosphere, with slow cooling, restores much of the loss and permeability lost in cutting and bending. It is applied to stamped EI cores, to wound cores after winding, and to sheared parts that will be bent. The coating must be selected for the anneal: an inorganic or half-organic coating survives, a plain organic resin does not and will leave the stack with bare, short-circuit-prone surfaces. Parts should be stacked loosely, without clamping stress, and the furnace charge should avoid carbon contamination, which raises loss in a way that cannot be corrected afterwards.
Assembly, Clamping and Acoustic Behaviour
Loose laminations vibrate. The magnetostrictive strain of grain-oriented silicon steel is small in absolute terms, on the order of a few parts per million at 1.7 T, but in a stack of hundreds of sheets the movement adds up and radiates as the familiar 100 Hz and 200 Hz transformer hum. Clamping pressure of roughly 0.1-0.3 MPa applied evenly through yoke and limb, the use of insulating bolts or insulated through-studs so that the clamping system does not form a short-circuit turn around the core, and varnish or adhesive bonding between sheets all reduce the effect. Over-clamping is also harmful: it introduces compressive stress that raises loss, particularly in thin high-induction grades.
Every metal part that surrounds the core - clamping plates, tie bars, tank walls - must be arranged so that it cannot form a closed conductive loop linking the main flux. Where a loop is unavoidable, an insulating break or a non-magnetic insert is placed in it. This single detail explains most of the stray-loss and local overheating complaints that appear after commissioning rather than at the factory test.
Incoming Inspection and Acceptance Rules
Verification of a delivered lamination core or a coil of electrical steel should be built around reproducible measurements rather than visual impression. A workable routine includes: check grade, heat number and coating type against the mill certificate; verify thickness at several points across the width with a micrometer, against the tolerance of the applicable GB/T 2521 part; check width and camber against the order; measure burr height on a sample of sheared parts; confirm interlayer resistance on a sample stack; verify stacking factor at the agreed pressure; and, for critical orders, witness or repeat a specific-loss test on an Epstein frame or single-sheet tester to confirm the guaranteed value. Dimensional and magnetic records should be traceable to the heat number, because loss disagreements between supplier and buyer are almost always settled by whether the tested sample truly represents the delivered lot.
Cores that will be annealed should be checked again after annealing, since the anneal can change flatness and can reveal coating defects as discoloured patches. Flatness deviation, twist and edge waviness matter more than they appear to: a stack built from wavy sheets contains internal air gaps that reduce the effective stacking factor and increase noise, and no amount of clamping will remove them.
FAQ
Q: Why are transformer cores laminated instead of being made from one solid piece of steel?
A solid core would allow large eddy currents to circulate in the steel. Thin insulated sheets interrupt those loops, and because eddy-current loss varies with the square of the conductive thickness, laminating a 0.30 mm sheet instead of a solid block removes the great majority of that loss.
Q: What is a normal stacking factor for a grain-oriented lamination core?
With 0.30 mm grain-oriented sheet and a standard half-organic or inorganic coating, a stacking factor of 0.94-0.97 is normal when measured at the declared clamping pressure. Values below 0.93 usually indicate thick coating, wavy sheet or poor stacking practice.
Q: Does the difference between 0.27 mm and 0.35 mm grain-oriented sheet matter at 50 Hz?
It does. The thinner sheet lowers eddy-current loss and is normally specified where loss guarantees are tight, at the cost of a slightly lower stacking factor and more shearing operations per tonne. Many distribution transformer designs settle on 0.27-0.30 mm, while 0.35 mm remains common where cost dominates.
Q: When must a lamination core be stress-relief annealed?
After heavy cold working: punched EI shapes, wound cores, and any part that has been bent or severely sheared. Annealing at about 750-820 degrees C in a controlled atmosphere restores loss and permeability, provided the coating was chosen to survive the cycle.
Q: Why do mitred or step-lap joints reduce no-load current?
A butt joint presents an air gap whose reluctance is inflated by fringing. A mitred corner turns the flux gradually and keeps the rolling direction closer to the flux path, and a step-lap arrangement staggers the gaps across successive layers so that the effective gap reluctance is much lower than a single aligned gap.
Q: How should the magnetic properties of a delivered lot be verified?
By sampling to a defined plan, confirming thickness, coating and burr, and testing specific total loss and induction on an Epstein frame or single-sheet tester to the method of IEC 60404-2 or IEC 60404-3, with results traceable to the heat number quoted on the inspection certificate.
