What is the difference between SA 516 70 and A36?

What is the difference between SA 516 70 and A36?

SA 516-70 and A36 differ primarily in application and strength: A36 is a general-purpose, lower-strength structural steel, while SA 516-70 is a higher-strength, pressure-vessel-quality steel designed for better toughness and heat resistance. A36 is preferred for structural projects, whereas SA 516-70 is used in boilers and pressure vessels.

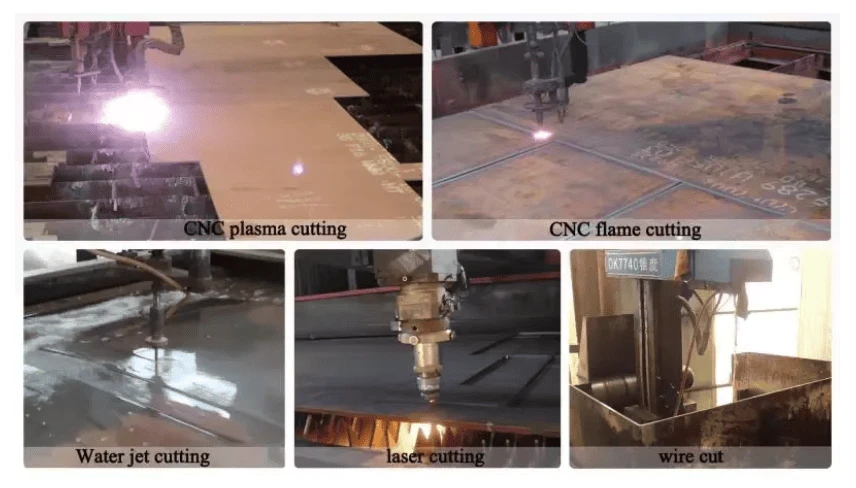

ASME SA516 Grade 70 is a high-strength carbon-manganese steel plate designed specifically for welded pressure vessels where improved notch toughness is required. As the highest strength grade within the SA516 specification, it is the industry "workhorse," offering a minimum tensile strength of 70 ksi. It is produced as a fully killed steel with a fine-grain microstructure, ensuring it can handle high internal pressures while maintaining reliability at moderate to lower operating temperatures. Its widespread use stems from its predictable mechanical properties and its compliance with strict ASME Boiler and Pressure Vessel Code requirements.

Key Characteristics

High Tensile Strength: Offers the highest load-bearing capacity among the SA516 grades.

Fine Grain Structure: Achieved through specific deoxidation practices to enhance impact resistance.

Excellent Weldability: Compatible with all standard industrial welding processes despite its higher strength.

Availability: The most stocked and readily available pressure vessel grade globally.

Grade Designation

"SA": The "S" indicates Section II (Materials) of the ASME Code. The "A" signifies a Ferrous Material (iron-based).

"516": This identifies the specific material specification for "Pressure Vessel Plates, Carbon Steel, for Moderate- and Lower-Temperature Service."

"Grade 70": This represents the Minimum Tensile Strength of the steel, which is 70 ksi (70,000 psi or approx. 485 MPa). It is the highest strength tier within the SA516 specification.

Comparison (vs. SA516 Gr. 60)

Strength Gap: Gr. 70 is significantly stronger than Gr. 60 (70ksi vs 60 ksi), allowing for much thinner vessel walls.

Ductility: Gr. 60 is more ductile, making it easier to cold-form into extremely tight radii than the stiffer Gr. 70.

Carbon Content: Gr. 70 has higher allowable carbon and manganese levels to achieve its strength.

Weight Savings: Using Gr. 70 instead of Gr. 60 typically results in a 15-20% reduction in total steel weight for a vessel.

Common Applications

Oil & Gas Separators: High-pressure units that separate oil, gas, and water.

Storage Spheres: Large-diameter "Horton Spheres" used for pressurized gas storage.

Refinery Columns: Vertical distillation towers and fractionators.

Industrial Boilers: Main steam drums in thermal power plants.

What is the sulfur content in ASME SA516 Grade 70?

The sulfur content in ASME SA516 Grade 70 is limited to a maximum of 0.035%. Low sulfur content is critical in preventing the formation of sulfide inclusions, which can weaken the material and make it more prone to cracking, especially during welding. This helps ensure the material's strength and durability, especially in high-pressure applications.

What are the inspection requirements for ASME SA516 Grade 70?

The inspection requirements for ASME SA516 Grade 70 include visual inspection, ultrasonic testing (UT), and sometimes magnetic particle or dye penetrant testing for surface defects. Mechanical tests such as tensile, impact, and hardness tests are carried out to ensure the material meets the required mechanical properties. Certification and inspection are necessary to ensure the material's suitability for pressure vessels and other critical applications.

What is the elongation of ASME SA516 Grade 70?

For plates with a thickness of up to 1.5 inches (38 mm), ASME SA516 Grade 70 typically exhibits an elongation of 20% in 8 inches (200 mm). This high elongation value indicates the material's good ductility, allowing it to stretch without breaking under tension. The elongation properties are important for ensuring that pressure vessels made from this material can withstand high-stress conditions without failure.

Typical Chemical Composition of  ASME SA516 Grade 70

ASME SA516 Grade 70 -Mechanical Properties

1. What is ASME SA516 Grade 70?

ASME SA516 Grade 70 is a carbon steel used for manufacturing pressure vessels and boilers. It is part of the ASME Boiler and Pressure Vessel Code (BPVC) and is widely utilized in industries such as power generation, petrochemical, and chemical processing. Known for its high strength and excellent weldability, it can withstand elevated temperatures and pressures, making it ideal for high-stress applications.

2. What are the applications of ASME SA516 Grade 70?

ASME SA516 Grade 70 is commonly used for pressure vessels, boilers, and heat exchangers in industries such as oil and gas, power generation, and chemical processing. Its strength, toughness, and good weldability make it ideal for high-pressure systems that require resistance to thermal stresses. It is also used in the fabrication of storage tanks and pipelines that operate under elevated temperatures.

3. What is the yield strength of ASME SA516 Grade 70?

The yield strength of ASME SA516 Grade 70 is typically 38 ksi (260 MPa) at room temperature. This yield strength is critical for maintaining the material's structural integrity under pressure, preventing deformation or failure. With its yield strength, SA516 Grade 70 can handle high-pressure conditions in power plants, refineries, and chemical industries, where the material must resist deformation during operation.

4. What is the impact test requirement for ASME SA516 Grade 70?

ASME SA516 Grade 70 requires an impact test at temperatures of 0°F (-18°C) to ensure the material has sufficient toughness and resistance to brittle fracture. The test measures the material's ability to absorb energy without breaking. The required impact energy is typically 20 ft-lbs (27 J) minimum at the specified temperature. This test ensures the material performs well in low-temperature environments where brittleness could be a concern.

5. What is the chemical composition of ASME SA516 Grade 70?

The chemical composition of ASME SA516 Grade 70 typically includes:,Carbon (C): 0.19–0.24%,Manganese (Mn): 0.60–1.35%,Phosphorus (P): ≤0.035%,Sulfur (S): ≤0.035%,Silicon (Si): 0.15–0.40%,These elements contribute to the material's high tensile strength, toughness, and resistance to thermal degradation, making it suitable for high-temperature pressure vessel applications.

6. What is the tensile strength of ASME SA516 Grade 70?

The tensile strength of ASME SA516 Grade 70 ranges from 70 ksi to 90 ksi (483–620 MPa). This provides the material with the ability to withstand high internal pressure and mechanical stress without failure. This tensile strength makes it a reliable material for use in pressure vessels, boilers, and other high-pressure systems, ensuring long-term structural integrity even in demanding applications.

7. What are the equivalents of ASME SA516 Grade 70?

ASME SA516 Grade 70 is equivalent to ASTM A516 Grade 70. Other international equivalents include EN 10028-3 P355GH, DIN 17155 19Mn6, and JIS G3115 SPV355. These materials share similar chemical compositions and mechanical properties, though specific testing standards and requirements may differ. Always check local regulations or consult with engineering professionals to ensure material compatibility in your application.
