When it comes to manufacturing safe, durable, and cost-effective LPG cylinders, HP295 steel coils have become the industry's "go-to" material-especially for household cylinders (12kg–50kg range).
But what exactly makes HP295 stand out? The answer lies in its balanced mechanical properties, manufacturing efficiency, and regulatory compatibility.
As an experienced gas cylinder steel manufacturer, GNEE supplies HP295 steel coils and steel with strict quality control, helping global buyers choose the right material for their projects.
What Is The HP295 Steel Plate Coil ?

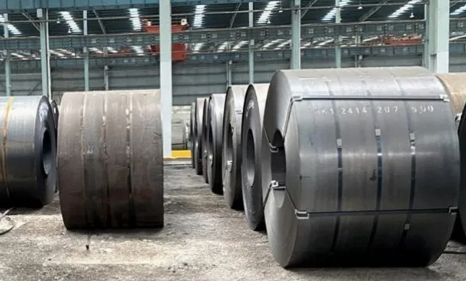

HP295 steel plate coil is a specialized hot-rolled steel grade primarily engineered for the manufacturing of welded gas cylinders, such as Liquefied Petroleum Gas tanks and fire extinguisher shells.
HP295 steel coil is the undisputed first choice for manufacturing LPG cylinders worldwide, not because of single outstanding performance, but because it achieves the best comprehensive balance of safety, manufacturability, cost stability, and service life for household and commercial LPG cylinders.
This material is widely utilized in the global pressure vessel industry due to its unique "fail-safe" metallurgical design; it is characterized by high tensile strength, superior deep-drawing capabilities, and excellent weldability. These properties ensure that gas containers remain structurally sound under constant internal pressure while maintaining enough ductility to deform safely rather than fragmenting in the event of extreme over-pressurization.
Optimized Mechanical Properties for LPG Pressure Levels
| Property | HP295 Typical Value |
|---|---|
| Yield Strength | ≥295 MPa |
| Tensile Strength | 440–560 MPa |
| Elongation | ≥26% |
| Yield Ratio | ~0.70–0.78 |
Why this matters:
LPG cylinders typically operate at ~1.6 MPa pressure
HP295 provides sufficient strength with a safe margin
High elongation ensures ductile failure instead of sudden rupture
Chemical Composition
| Element | Content (%) |
| Carbon (C) |
≤0.20 |
| Manganese (Mn) |
0.80−1.50 |
| Silicon (Si) |
≤0.35≤ |
| Phosphorus (P) |
≤0.020 |
| Sulfur (S) |
≤0.015 |
HP295 Steel for LPG Cylinders: Key Performance Advantages
Excellent Formability for Deep-Drawing Cylinder Production
LPG cylinder bodies are typically manufactured by continuous deep drawing from hot-rolled steel coils, a process that involves multiple stages of stretching, shaping, and forming.
HP295 exhibits outstanding ductility, with a minimum elongation of ≥26% when the thickness t≥3mm (in line with national and industry standards for LPG cylinder steel). This high elongation ensures that the steel can undergo large plastic deformation during the deep drawing process without losing its structural integrity. In addition, it has excellent cold-bending performance: when subjected to cold bending tests (bending angle ≥180°, bending radius equal to the thickness of the steel plate), the surface of the steel plate shows no cracks, folds, or other defects, which is crucial for the subsequent stamping, flanging, and rounding processes of LPG cylinders.
During the actual production of LPG cylinders, HP295 demonstrates strong resistance to cracking and tearing. Whether it is the initial deep drawing of the cylinder blank, the flanging of the cylinder mouth (to ensure tight connection with the valve), or the rounding of the cylinder bottom (to enhance structural stability), HP295 can maintain uniform deformation, avoiding local stress concentration that may cause material damage.
Outstanding Weldability for Safe and Reliable Joints
For welded LPG cylinders, welds are the core safety component-they bear the internal pressure of the cylinder, seal the LPG medium, and their quality directly determines the safety and reliability of the entire cylinder. Once the welds have defects such as cracks, porosity, or incomplete fusion, it may lead to LPG leakage, and even serious accidents such as explosions. HP295 is designed with excellent weldability, effectively ensuring the quality of weld joints and the long-term safety of LPG cylinders.
The key factor contributing to HP295's excellent weldability is its low carbon equivalent (Ceq ≤0.45%). The carbon equivalent is an important indicator to evaluate the weldability of steel: a lower carbon equivalent means the steel has less tendency to form hard and brittle martensite in the heat-affected zone during welding, thereby reducing the risk of cold cracking (a common defect in steel welding, which usually occurs after welding and is difficult to detect). For LPG cylinder production, which requires high welding quality, the low carbon equivalent of HP295 avoids the hidden danger of cold cracking, ensuring the structural integrity of the welds.
|
Performance Indicator |
HP295 Specification |
Impact on Weld Quality |
|---|---|---|
|
Carbon Equivalent (Ceq) |
≤0.45% |
Low cold cracking risk, good weldability |
|
Preheating Requirement |
No preheating (ambient ≥5℃, t≤10mm) |
Simplifies process, saves energy and time |
|
Weld Joint Tensile Strength |
≥90% of base metal |
Weld is not a weak link, stable structure |
|
Weld Airtightness |
No leakage in pressure test |
Ensures no LPG leakage, high safety |
High Fatigue Resistance for Repeated Refilling Service
LPG cylinders are typical pressure vessels that are refilled and used repeatedly during their service life-under normal circumstances, a standard LPG cylinder will be refilled hundreds or even thousands of times. Each refilling process involves the change of internal pressure (from atmospheric pressure to the rated working pressure of 1.6MPa, and then to atmospheric pressure during use), which forms cyclic pressure loads on the cylinder body.
The high fatigue resistance of HP295 ensures that the service life of LPG cylinders meets the standard requirements of 8–12 years. During the long-term use of the cylinder, even after repeated refilling and pressure changes, HP295 can maintain the structural integrity of the cylinder body, without deformation, cracking, or other defects that affect safety.
In addition, HP295 can also resist performance degradation caused by temperature changes and pressure fluctuations-LPG cylinders are often used in different ambient temperatures (from -20℃ to 60℃), and the internal pressure will also change with temperature. HP295's stable fatigue performance ensures that it can still maintain good structural stability under such harsh conditions, avoiding safety accidents caused by material fatigue failure.
Good Toughness to Prevent Brittle Fracture
LPG cylinders are often used outdoors, transported frequently, and may be subjected to accidental impacts (such as collisions during loading, unloading, or use). In addition, they may be used in low-temperature environments (such as cold regions in winter, where the ambient temperature can be as low as -20℃). These working conditions require the steel material of the cylinder to have good toughness, which can avoid brittle fracture under low temperature or accidental impact-brittle fracture is a sudden and destructive failure mode, which may lead to the explosion of the cylinder and
serious safety accidents. HP295 has excellent toughness, which can effectively prevent brittle fracture and improve the safety of LPG cylinders.
HP295 has excellent room-temperature impact toughness: the impact energy (KV) at room temperature (20℃) is not less than 34J, which means that the steel can absorb a large amount of energy when subjected to impact, avoiding brittle fracture. Even in low-temperature environments (-20℃), the impact energy of HP295 is still not less than 27J, which meets the low-temperature toughness requirements of LPG cylinders used in cold regions. This excellent low-temperature toughness is due to the reasonable chemical composition design of HP295 (adding appropriate alloying elements such as Mn, Si) and the controlled rolling and cooling process, which makes the steel form a tough ferrite-pearlite structure, avoiding the formation of hard and brittle phases.
|
Temperature |
Impact Energy (KV, ≥J) |
Failure Mode |
Compliance with Safety Standards |
|---|---|---|---|
|
Room Temperature (20℃) |
34 |
Ductile deformation |
Meets national standards |
|
Low Temperature (-20℃) |
27 |
Ductile deformation, no brittle fracture |
Meets low-temperature safety requirements |
|
Low Temperature (-30℃) |
22 |
Minor ductile deformation, no brittle fracture |
Meets most cold-region requirements |
Contact GNEE for pricing, technical support, or customized solutions.
What is the difference between HP295 and HP235 steel coil?
HP295 has higher yield strength (295 MPa vs 235 MPa), suitable for larger or higher-pressure cylinders. HP235 has better formability and is mostly used for small and medium-sized cylinders.
What specifications and delivery conditions are available?
Common thickness ranges from 1.8 mm to 12.0 mm, width from 800 mm to 1600 mm. It is usually delivered in normalized or TMCP condition, with complete mill test certificates.
Is HP295 steel coil suitable for automated mass production?
Yes. It features stable chemical and mechanical properties, good batch consistency, and strong adaptability to high-speed production lines, helping cylinder manufacturers improve efficiency and reduce overall production costs.
How does HP295 ensure safety in pressure-bearing applications?
It has a reasonable yield-strength ratio, showing obvious plastic deformation before fracture. Strictly controlled impurities and fine-grained structure ensure excellent toughness and avoid brittle failure.
