P265GH Vessel Grade Steel Plate
Standard:AISI, ASTM, DIN, JIS, GB
Technique:Hot Rolled
Shape:Plate
Want to know more about our products? Please contact us by email or phone.
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional p265gh vessel grade steel plate manufacturers and suppliers in China. Welcome to wholesale customized p265gh vessel grade steel plate at competitive price from our factory. Good service and quality products are available.
P265GH Vessel Grade Steel Plate
P265GH vessel plate is classified as medium pressure boiler steel plate, a kind of European pressure vessel steel plate.P265GH boiler plate is non-alloyed quality steel with high temperature function, fulfilling the specification: EN10028-2.P265GH pressure vessel steel has outstanding plasticity, resistance, cold bending function and Welding function.
P265GH boiler steel plate has excellent tensile strength and impact toughness at room temperature, these excellent mechanical properties make P265GH pressure vessel plate perform well in various structural applications.
Pressure Vessel (PVQ) Steel Plate Chemical Composition
| C | Si | Mn | P | S | Cr | Cu | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| 0.25 max | 0.10 – 0.35 | 0.60 – 1.40 | 0.030 max | 0.030 max | 0.25 max | 0.30 max | 0.10 max | 0.30 max |
Pressure Vessel Steel Plate Mechanical Property
| Product thickness | Yield strength (MPA) minimum | Tensile strength (MPA) | Elongation A% minimum |
|---|---|---|---|
| up to 16mm | 265 | 410 – 530 | 22 |
| 16mm to 40mm | 255 | 410 – 530 | 22 |
| over 40mm to 60mm | 245 | 410 – 530 | 22 |
| over 60 to 100mm | 215 | 410 – 530 | 22 |
| over 100mm to 150mm | 200 | 400 – 530 | 22 |
| over 150mm to 250mm | 185 | 390 – 530 | 22 |

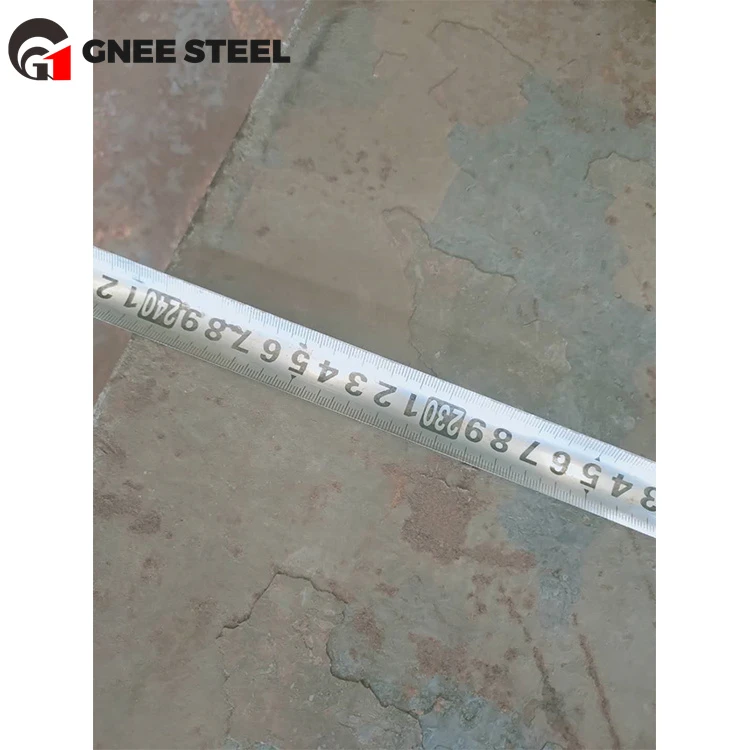

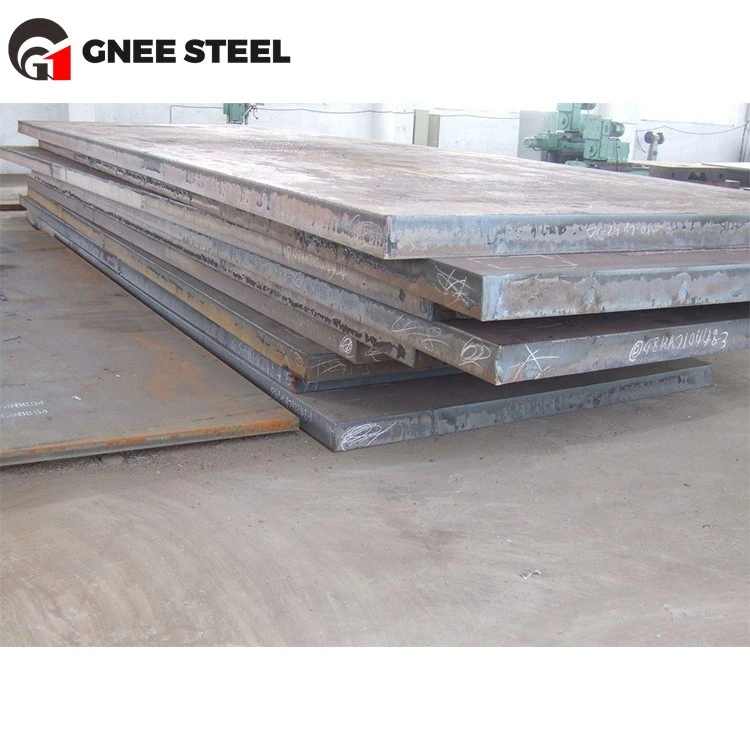

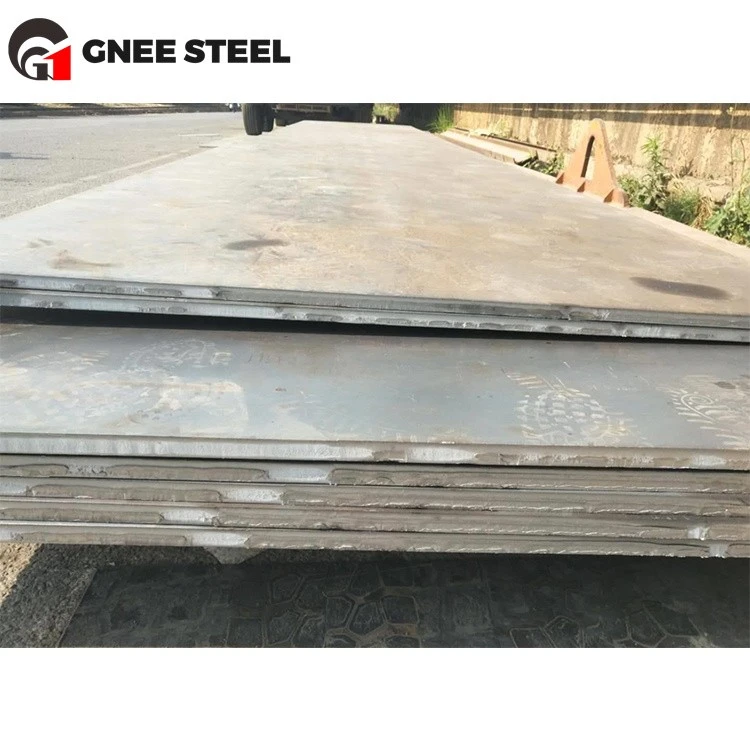

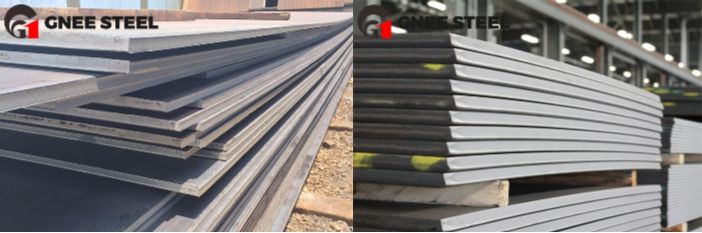

Pressure Vessel Steel Shell Plate Product Image
gNEE group customer visit
gNEE group Steel Exhibition
We have more than 15 years of experience in manufacturing and exporting, please contact me if you have any customised requirements for your P265GH vessel grade steel plate or other hot rolled steel sheets.
