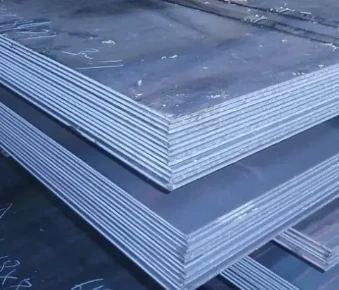

Factory Price 12mm 15mm AH36 Shipbuilding Steel Plate Marine Sheet CCS Certificate Steel Plate For Ship Building
Factory Price 12mm 15mm AH36 Shipbuilding Steel Plate Marine Sheet CCS Certificate Steel Plate For Ship Building
Factory Price 12mm 15mm AH36 Shipbuilding Steel Plate Marine Sheet CCS Certificate Steel Plate For Ship Building
Factory Price 12mm 15mm AH36 Shipbuilding Steel Plate Marine Sheet CCS Certificate Steel Plate For Ship Building
Factory Price 12mm 15mm AH36 Shipbuilding Steel Plate Marine Sheet CCS Certificate Steel Plate For Ship Building
CCS 12mm 15mm AH36 marine sheet
Payment:T/T30% Deposit+70% Advance
Technique:Hot Rolled
Tolerance:±1%
Want to know more about our products? Please contact us by email or phone.
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional ccs 12mm 15mm ah36 marine sheet manufacturers and suppliers in China. Welcome to wholesale customized ccs 12mm 15mm ah36 marine sheet at competitive price from our factory. Good service and quality products are available.
CCS 12mm 15mm AH36 marine sheet
AH36 grade marine steel plate is mainly used in shipbuilding, ship repair and other offshore projects.AH36 grade marine sheet has high strength and can meet the needs of ships, barges and other types of vessels.
Products Details
| CCS AH36 marine steel plate Specification | According to client's need |
| Technique | Hot rolled, TMCP |
| Density | 7.85 g/cm ³ |
| Additional Condition | Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, UT, The Third Party Test (such as SGS Test) |
AH36 shipbuilding steel plate Chemical composition
| C max | Si max | Mn | P max | S max | Al Min. | Cb | V | Ti max. | Cu max. | Cr max. | Ni max. | Mo max. | N max. |
| 0.18 | 0.10-0.50 | 0.90-1.60 | 0.035 | 0.035 | 0.015 | 0.02-0.05 | 0.05-0.10 | 0.02 | 0.35 | 0.20 | 0.40 | 0.08 | - |
aH36 shipbuilding steel mechanical property
| Grade | Mechanical Property | Charpy V Impact Test | |||||
| Thickness | Yield | Tensile | Elongation | Degree | Transverse | Longitudinal | |
| AH36 | mm | Min Mpa | Mpa | Min % | 0 | J | J |
| t≤50 | 355 | 490-620 | 19% | 24 | 34 | ||
| 50 | 355 | 490-620 | 19% | 27 | 41 | ||
| 70 | 355 | 490-620 | 19% | 34 | 50 | ||
aH36 Plate impact properties
| GRADE | THICKNESS (in) |
TEST TEMPERATURE (°F) |
MIN LONGITUDINAL AVERAGE ENERGY 1) (ft-lbs) |
MIN TRANSVERSE AVERAGE ENERGY 1) (ft-lbs) |
|---|---|---|---|---|
| AH36Z35 | 0.750 - 2.00 | 32 | 25 | 17 |
| AH36Z35 | 2.001 - 2.80 | 32 | 30 | 20 |
| AH36Z35 | 2.801 - 4.00 | 32 | 37 | 25 |
| DH36Z35 | 0.750 - 2.00 | -4 | 25 | 17 |
| DH36Z35 | 2.001 - 2.80 | -4 | 30 | 20 |
| DH36Z35 | 2.801 - 4.00 | -4 | 37 | 25 |
| EH36Z35 | 0.750 - 2.00 | -40 | 25 | 17 |
| EH36Z35 | 2.001 - 2.80 | -40 | 30 | 20 |
| EH36Z35 | 2.801 - 4.00 | -40 | 37 | 25 |
steel used in shipbuilding image
