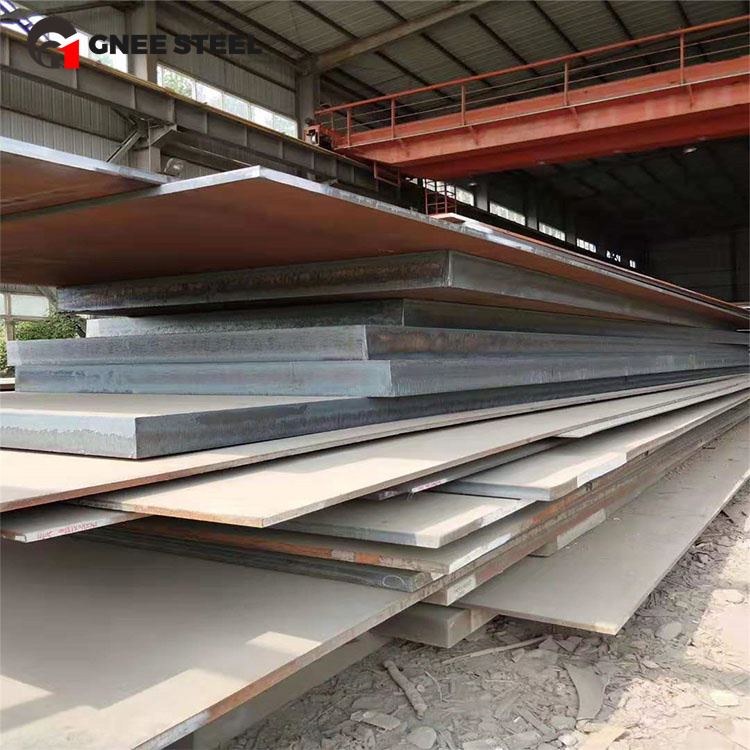

NM360 NM400 Armored Steel Plate

Gnee Steel (Tianjin) Co., Ltd. is one of the most professional nm360 nm400 armored steel plate manufacturers and suppliers in China. Welcome to wholesale customized nm360 nm400 armored steel plate at competitive price from our factory. Good service and quality products are available.



NM360 NM400 Armored Steel Plate

---

【GNEE Group Office Environment Display】

NM360 wear plate is used in construction machinery, mining machinery, coal mining machinery, environmental protection machinery, metallurgical machinery and so on. Produced for excavator, loader, bulldozer bucket plate, edge plate, side edge plate, blade, crusher liner, blade construction projects.NM360 is mainly used to provide protection in the need for wear-resistant occasions or parts of the equipment, so that the equipment life is longer, reduce maintenance brought about by the overhaul downtime, and accordingly reduce the investment of funds.

NM400 steel plate is a high-strength, high wear-resistant steel plate material, widely used in a variety of industrial fields. It has excellent wear resistance, strength and corrosion resistance, which can meet the needs of different industries.





C	Si	Mn	P	S	Cr	Mo	Ni	B
≤0.17	≤0.50	≤1.5	≤0.025	≤0.015	≤0.70	≤0.40	≤0.50	≤0.005





C max	Si max	Mn max	P	S	Cr max	Mo max
0.22	2.0	2.2	≤0.020	≤0.006	0.90	0.50





Thickness/mm	ReL /MPa	Rm /MPa	A/%	Hardness HBW10/3000	Impact -20℃/J
20	1050	1160	19.0	360.0	65
25	1020	1180	18.5	375.0	52
30	1040	1180	17.0	369.0	65
40	1020	1160	18.0	368.0	68





Thickness mm	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Hardness (HB)	20℃(AKV)
8-50	≥900	≥1150	≥10	360-420	≥25





(1) handling machinery and equipment: unloading mill chain plate, hopper liner, grab the edge plate, and automatic tipper tipping plate;



(2) of construction machinery equipment: Cement pusher plate, concrete mixer liner, mixing building lining board. Dust collector liner;



(3) metallurgical machinery equipment: iron ore sintering conveying elbow, iron ore sintering machine liner, scraper machine liner;

(4) mining machinery and equipment: aggregate, stone crusher liner, blade;



(5) Other mechanical equipment: sand barrel, blade, a variety of port machinery wear part;



(6) of thermal power equipment: coal mill lining board Coal, coal conveying pipe, coal distributor frame, unloading equipment lining plate;



(7) shot blasting machinery: shot blasting machine lining board;



(8) engineering machinery and equipment: loaders, bulldozers, excavators;









We have professional online service staff, if you have any doubt about NM360 NM400 Armored Steel Plate, please send enquiry to us, we will reply you within one working day.
