A572 Gr50 Steel: Specifications, Mechanical Properties & Industrial Applications
1. Overview of A572 Gr50 Steel
A572 Grade 50 is a popular high-strength low-alloy (HSLA) structural steel specified under ASTM standards. It delivers balanced mechanical performance, good formability and cost-effectiveness, making it a primary material for general structural engineering and industrial fabrication. This steel grade features stable chemical composition and consistent batch-to-batch performance, fully complying with mainstream industrial application requirements for structural steel.
2. Chemical Composition of A572 Gr50
The chemical composition of A572 Gr50 is strictly controlled within ASTM standard limits to ensure reliable inherent properties. Major elements include carbon, manganese, phosphorus, sulfur and silicon, along with trace alloying elements. The optimized element ratios deliver desirable strength and toughness, while limiting harmful impurities to preserve excellent weldability and formability. All chemical indicators adhere to the official standard requirements for this steel grade.
The astm a572 gr 50 chemical composition is optimized for strength and weldability:
|
Element |
Composition (%) |
|---|---|
|
Carbon (C) |
≤ 0.23 |
|
Manganese (Mn) |
≤ 1.35 |
|
Phosphorus (P) |
≤ 0.04 |
|
Sulfur (S) |
≤ 0.05 |
|
Silicon (Si) |
≤ 0.40 |
|
Vanadium (V) |
0.01-0.15 |
|
Columbium (Nb) |
0.005-0.05 |
|
Copper (Cu, optional) |
≥ 0.20 |
This composition ensures a low carbon equivalent, facilitating welding in astm a572 gr 50 plate and other forms.
3. Mechanical Properties of A572 Gr50
3.1 Yield Strength & Tensile Strength
A572 Gr50 is categorized by its high yield strength. Its minimum specified yield strength is 50 ksi, the key performance marker of this grade. It also meets standard requirements for tensile strength, forming a stable strength system that enables the steel to withstand static and general dynamic loads in structural service.
3.2 Elongation & Toughness
This steel grade offers satisfactory elongation, which represents superior plastic deformation capability. It resists cracking during cutting, bending and other cold forming processes. Its toughness properties satisfy operating demands under normal ambient temperatures, guaranteeing long-term structural safety.
The astm a572 gr 50 mechanical properties provide a strong foundation for structural use:
|
Property |
Value |
|---|---|
|
Yield Strength (Min) |
345 MPa (50 ksi) |
|
Tensile Strength (Min) |
450 MPa (65 ksi) |
|
Elongation (in 200mm) |
≥ 18% |
|
Elongation (in 50mm) |
≥ 21% |
|
Charpy Impact (at 0°C, optional) |
≥ 27 J |
These astm a572 gr 50 material properties make it suitable for high-stress environments, with equivalents matching closely in strength.

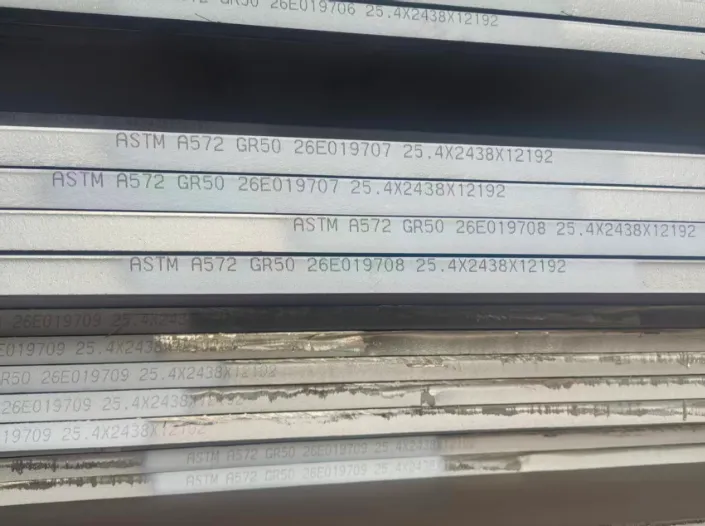

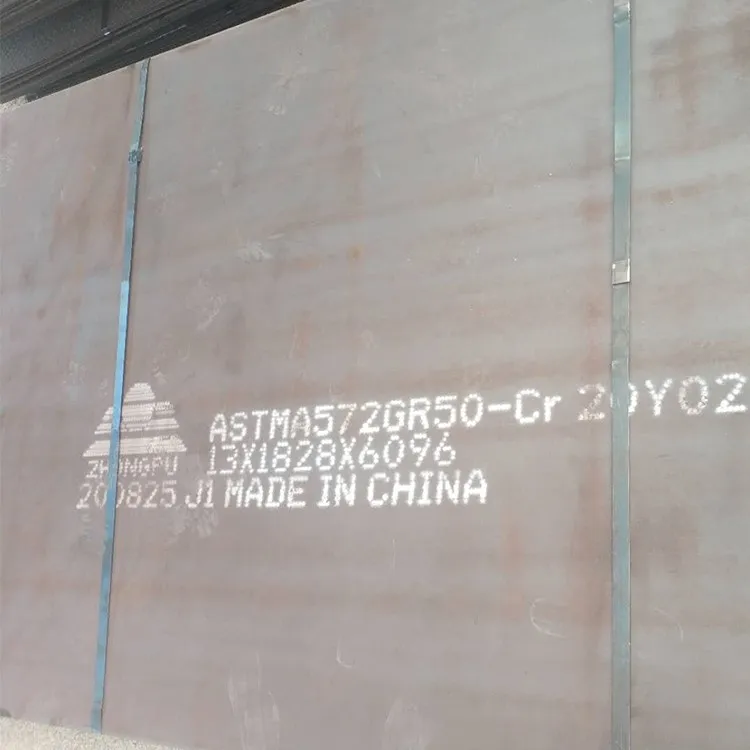

4. Product Forms & Dimensional Specifications
A572 Gr50 is predominantly supplied as steel plate products with a full range of standard thickness, width and length options. Standard sizes are readily available, and custom dimension processing is supported to meet diverse project and manufacturing needs. Finished plates feature flat surfaces, and all dimensional tolerances comply with standard acceptance criteria.
Available Sizes & Dimensions
We supply A572 Gr50 in a wide range of sizes. Custom cutting to your specific dimensions is available.
| Item | Details |
|---|---|
| Product Grade | A572 Grade 50 |
| Product Form | Steel Sheet (Coil / Cut‑to‑length) & Steel Plate |
| Thickness - Sheet | 1.5 mm – 6 mm (approx. 16 gauge to 1/4") |
| Thickness - Plate | 6 mm – 150 mm+ (approx. 1/4" to 6") |
| Width | 1000 mm, 1219 mm (4 ft), 1500 mm (5 ft), 2000 mm, 2438 mm (8 ft), up to 3000 mm+ |
| Length | 2438 mm (8 ft), 6000 mm (20 ft), 12000 mm (40 ft), or customized |
| Surface Treatment | Hot Rolled (HR), Black, Shot Blasted & Primer Coated |
| Service | Custom cutting to specific dimensions available |
5.Equivalent Grades of ASTM A572 Gr 50
The a572 gr 50 equivalent material varies by region but maintains similar properties:
|
Standard |
Equivalent Grade |
|---|---|
|
EN 10025 |
S355JR |
|
DIN 17100 |
St52-3 |
|
JIS G3106 |
SM490A |
|
GB/T 1591 |
Q345B / Q355B |
|
AS/NZS 3678 |
350 |
|
BS |
50B / 50C |
For example, EN S355JR is a common astm a572 gr 50 equivalent sae with comparable yield strength, while Chinese Q345B is often used as a cost-effective substitute in Asian markets.
6. Fabrication Performance
6.1 Weldability
A572 Gr50 possesses excellent weldability and is compatible with conventional welding processes. With standard welding procedures and proper process controls, welded joints can achieve performance matching the base metal, suitable for both on-site structural assembly and factory prefabrication.
6.2 Cold & Hot Working Performance
The material supports common cold working operations including shearing, bending and stamping, and is also suitable for conventional hot forming. No obvious performance degradation or material damage occurs during standard fabrication, providing high flexibility for component manufacturing.
7. Primary Application Fields
Thanks to its outstanding overall performance, A572 Gr50 steel is widely used across multiple industrial sectors.
- Building Structure: Load-bearing components, industrial building frames and support structures.
- Bridge Engineering: Secondary structural parts, bearing plates and supporting members for general bridges.
- Mechanical Manufacturing: Equipment frames, base supports and general structural components.
- Transportation Facilities: Vehicle structural parts, container components and transport auxiliary structures.
- General Engineering Projects: Permanent and temporary steel structures for various projects.
8. Quality & Supply Advantages

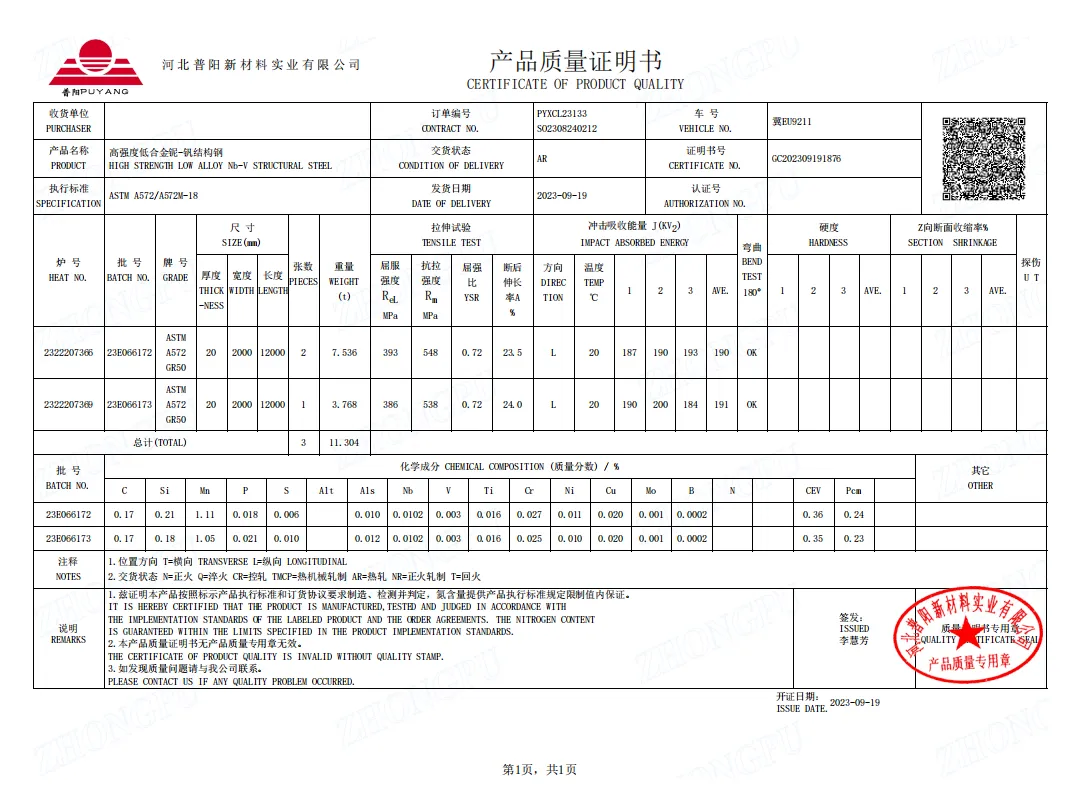

All A572 Gr50 steel products from GNEE STEEL are manufactured and inspected in accordance with strict quality control protocols. Each production batch is accompanied by complete mill test reports (MTR), certifying that chemical composition, mechanical properties and dimensions fully conform to relevant standards. We maintain stable product quality, sufficient inventory and standardized packaging & delivery services to fulfill global procurement demands for structural steel.
9. Conclusion
A572 Gr50 is one of the most versatile high-strength low-alloy structural steel grades in the industry. With standardized chemical composition, stable mechanical properties, excellent fabrication performance and broad applicability, it has become a preferred material for structural engineering and manufacturing projects. GNEE STEEL supplies full-range, high-quality A572 Gr50 steel products to support the execution of various engineering and production projects worldwide.
What is A572 GR 50 equivalent to?
ASTM A572 Grade 50 is a popular high-strength, low-alloy (HSLA) structural steel. Its global equivalents include EN 10025-2 S355JR (Europe), GB/T 1591 Q355B (China), and JIS G3106 SM490A (Japan). These grades share a minimum yield strength of 50 ksi or 345 MPa.
What is astm A572 GR 50 standard?
ASTM A572 GR. 50 is a high-strength, low-alloy (HSLA) steel plate with a yield strength of 50,000 psi and a minimum tensile strength of 65,000 psi. It is intended for use in structural applications such as bridges, buildings, and other structures.
Is A572 grade 50 the same as A36?
A572 Grade 50 - When You Need More Strength
With a minimum yield strength of 50,000 psi - about 39% stronger than A36 - it lets you use lighter sections to carry the same load. That means less material, lower weight, and often lower cost on larger projects.
Is A36 the same as A572?
No, A572 is not the same as A36. While both are common structural steels, they have different mechanical properties and are not directly interchangeable.
Strength: A572 (typically Grade 50) is a high-strength, low-alloy (HSLA) steel with a minimum yield strength of 50,000 psi. A36 is a standard carbon steel with a minimum yield strength of 36,000 psi.
Weight: Because A572 is stronger, it allows for thinner, lighter steel sections to carry the same load as a heavier A36 section.
Fabrication: A36 contains less carbon, making it easier to bend, machine, and weld.
Dual-Certification: Some steel plates and shapes are "dual-certified" at the mill, meaning the material batch meets the requirements of both specifications.
Read More About:ASTMA36 vs. ASTM A572
Is A572 a carbon steel?
A572 is also a mild carbon steel, but the greater addition of certain chemical alloys – such as phosphorus, manganese and silicon – makes it a high-strength, low-alloy (HSLA) steel, meaning it has higher strength and lower weight relative to mild steel.
Is A572 grade 50 equivalent to s355?
With minimum yield strength of 50 ksi, EN structural steel S355JR meets requirements in chemistry and physical properties similar to ASTM material A572 Grade 50. That is to say, EN structural steel S355JR equivalent ASTM material is A572 Grade 50.
What is A572 steel used for?
A572 is a high-strength, low-alloy (HSLA) steel highly valued for its excellent strength-to-weight ratio. It is primarily used in load-bearing structural applications where high strength and weight savings are crucial, allowing builders to use a lighter, thinner profile without sacrificing durability.
Common uses include:
Transportation: Truck frames, freight cars, and ship components.
Infrastructure: Bridges, highway components, and transmission towers.
Buildings: Structural steel frameworks for skyscrapers and commercial buildings.
Heavy Machinery: Cranes, construction equipment, and industrial machinery that endure high stress.
What is the difference between 4140 and A572 grade 50 steel?
A572 is a hot-rolled carbon steel that is used where a high strength to weight ratio is desired. A grade such as AISI 4140 offers decent corrosion resistance due to higher chromium and molybdenum content and is commonly used in firearm parts, pressurized gas tubes, and structural tubing for roll cages.
