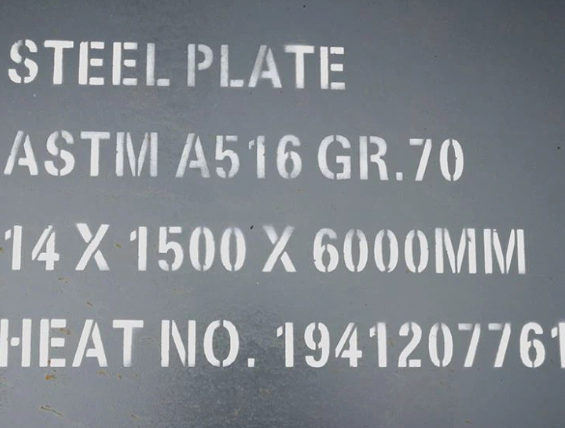

ASTM A516 Grade 70: Properties and Applications

ASTM A516 Grade 70 is a premium, highly weldable carbon steel plate specifically engineered for welded pressure vessels and boilers. It is prized for its high tensile strength, exceptional notch toughness in low-temperature environments, and high-pressure resilience across the oil, gas, and energy industries.

ASTM A516 GR 70 is a carbon steel plate designed for excellent weldability and toughness, particularly in normalized conditions. The chemical composition, as specified by ASTM standards, is tightly controlled to ensure performance in pressure vessel applications. The following table outlines the key elements:

Key Notes:

• Carbon: Capped at 0.27% to maintain weldability and prevent excessive hardness.
• Manganese: Enhances strength and toughness, critical for high-pressure environments.
• Phosphorus and Sulfur: Low levels minimize brittleness and improve notch toughness.
• Silicon and Aluminum: Ensure the steel is fully killed, reducing gas inclusions and enhancing mechanical properties.

GNEE steel's ASTM A516 GR 70 plates comply with both ASTM and ASME SA516 GR 70 standards, with additional testing available to verify chemical consistency.

The mechanical properties of ASTM A516 GR 70 make it ideal for pressure vessels and boilers operating under moderate to low temperatures. Its normalized condition enhances toughness and resistance to thermal stress. The following table summarizes the mechanical properties:

Highlights:

• Tensile Strength: 485–620 MPa ensures durability in high-pressure applications.
• Yield Strength: Minimum 260 MPa supports structural integrity in demanding conditions.
• Elongation: 17–21% ductility facilitates forming and fabrication without cracking.
• Impact Toughness: Excellent performance at low temperatures (down to -46°C), ideal for cryogenic applications.

Compared to ASTM A516 GR 65 and ASTM A516 GR 60, ASTM A516 GR 70 offers superior strength, making it suitable for more robust pressure vessel designs while retaining excellent weldability.

These properties ensure ASTM A516 GR 70 performs reliably in high-temperature and high-pressure environments, with good thermal stability for boiler applications.

The versatility of ASTM A516 Grade 70 pressure vessel steel extends to various industries:

• Oil and Gas: Used in storage tanks, separators, and pipelines for its ability to handle pressurized hydrocarbons.
• Chemical Processing: Ideal for reactors and heat exchangers due to its resistance to moderate corrosion.
• Power Generation: Common in boilers and steam drums where high temperatures and pressures are involved.
• Manufacturing: Employed in welded structures requiring normalization or stress-relieving post-fabrication.

Its weldability allows for easy fabrication, and when paired with appropriate filler metals, it meets stringent codes like ASME Section VIII for pressure vessel construction.

To aid material selection, the following table compares ASTM A516 GR 70 with related grades:

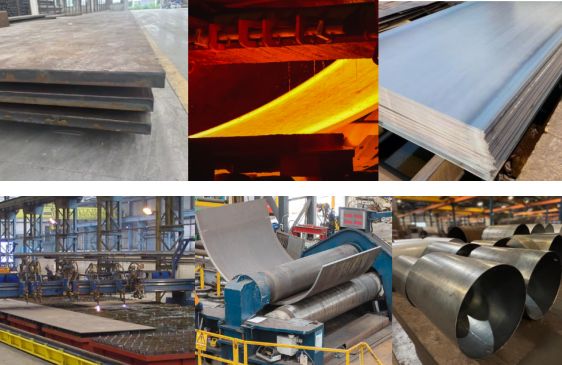

ASTM A516 GR 70 is fully killed carbon steel, ensuring excellent weldability with standard welding processes like SMAW, GTAW, and SAW. Its low carbon content minimizes the risk of weld imperfections, while normalization enhances grain structure for improved toughness. GNEE steel provides plates in hot-rolled, normalized, or clad forms to meet specific fabrication needs.

Compared to Grades 60 or 65, ASTM A516 Grade 70 provides higher tensile and yield strength, which translates to thinner plates for the same pressure rating-reducing material costs and weight. It's also normalized to refine grain structure, improving toughness. However, always consult the full ASTM specification for heat treatment requirements, as plates over certain thicknesses may need additional processing.

Request A Quote

Are you ready to secure high-quality ASTM A516 Grade 70 pressure vessel plates for your next project?

Whether you need standard stock sizes or custom dimensions with specific testing requirements, GNEE Steel is your trusted partner. Don't compromise on quality and safety-your project deserves the best, and we deliver precisely that.

What is ASTM A516 grade 70 equivalent to?

P355GH

ASTM A516 Grade 70 is a boiler / pressure vessel quality of steel plate for use in low to moderate services. It has improved notch toughness. A516 GD70 steel plate is equivalent to the P355GH and 490B grades.

What is A516 GR 70?

a516-70. ASTM a516 Grade 70 steel is a versatile pressure vessel plate that's well-suited to low and moderate temperature applications, making it an ideal material for industrial boilers and pressure vessels.

Is ASTM A516 Grade 60 or 70?

Applications of ASTM A516 GRADE 60 / 70 Steel Plate
Both grades are used in the fabrication of pressure vessels and Boilers, but due to its higher tensile strength and yield strength, Grade 70 is often preferred for applications requiring greater durability and strength.

What is the difference between A36 and A516 GR 70?

ASTM A516 GR 70 outperforms ASTM A36 in tensile strength, low-temperature toughness, and pressure vessel applications, while A36 is better suited for general structural uses.

Is SA516 70 carbon steel?

ASTM A516-70 and ASME SA516-70 steel plate products are made from carbon-manganese steels and produced to pressure vessel quality(PVQ) standards as delineated in ASTM A20/ASME SA20.

What is the allowable stress for A516 GR 70?

The allowable stress for SA516 GR70 is approximately 138 MPa (20 ksi) at room temperature, per ASME Section VIII, depending on temperature and design.

What is the difference between A516 grade 70 and A105?

ASTM A516 Gr. 70 is usually used to manufacture pressure vessels, and its materials must meet higher requirements, including tensile strength, yield strength, impact toughness, etc. In contrast, ASTM A105 is used to manufacture flanges, which generally have lower material requirements.
