What is 16Mo3 Material?
16Mo3 (steel number 1.5415) is a low-alloy molybdenum steel grade specified under European standard EN 10028-2 for flat products used in pressure purposes. The designation reflects its approximate composition: 0.16% carbon and 0.30% molybdenum.
As a chrome-molybdenum alloy steel, 16Mo3 material is engineered specifically for elevated-temperature service in boilers, pressure vessels, heat exchangers, and piping systems.
The addition of molybdenum (0.25–0.35%) significantly enhances creep strength at temperatures up to 500–530°C (932–986°F), while maintaining good weldability and oxidation resistance. 16Mo3 steel is typically supplied in the normalized condition and is manufactured as fine-grain killed steel through electric furnace smelting, out-of-furnace refining, and vacuum degassing.
- Key standard: EN 10028-2
- Steel number: 1.5415
- Type: Mo-alloyed pressure vessel steel
- Max service temp: ~530°C
- Delivery Condition:+N/+AR/+TMCP
16Mo3 Equivalent ASTM Material Grades Explained
When international projects require substituting 16Mo3 with ASTM-grade steel, engineers must identify the closest equivalent based on product form, application, and operating temperature. The following table presents the primary 16Mo3 equivalent ASTM material grades:
| Product Form | 16Mo3 Equivalent ASTM Grade | Standard | Application |
|---|---|---|---|
| Plates / Welded Pipe | ASTM A204 Gr. A & Gr. B | ASTM A204/A204M | Pressure vessel & boiler plates |
| Seamless Pipe | ASTM A335 P1 | ASTM A335/A335M | High-temperature piping systems |
| Bars / Castings | ASTM A217 WC1 | ASTM A217/A217M | Steel castings for valves & fittings |
| High-Temp Upgrade | ASTM A387 Gr. 11 Cl. 2 | ASTM A387/A387M | Refinery reactors, elevated-temp vessels |
Quick Reference: For pressure vessel plate applications, ASTM A204 Grade A is the most widely accepted 16Mo3 equivalent ASTM material. For seamless piping, ASTM A335 P1 is the direct counterpart.
Need 16Mo3 plates or ASTM A204 equivalent steel for your project? Get a competitive quote today with EN 10204 3.1/3.2 MTC.
16Mo3 Chemical Composition vs ASTM A204 Equivalent
Understanding the chemical composition differences between 16Mo3 and its ASTM equivalent is critical for material substitution validation. Below is a detailed comparison of 16Mo3 composition against ASTM A204 Grade A and Grade B:
| Element | 16Mo3 (EN 10028-2) | ASTM A204 Gr. A | ASTM A204 Gr. B |
|---|---|---|---|
| Carbon (C) | 0.12 – 0.20% | 0.18 max | 0.20 max |
| Silicon (Si) | ≤ 0.35% | 0.15 – 0.40% | 0.15 – 0.40% |
| Manganese (Mn) | 0.40 – 0.90% | 0.55 – 0.80% | 0.55 – 0.80% |
| Phosphorus (P) | ≤ 0.025% | ≤ 0.035% | ≤ 0.035% |
| Sulfur (S) | ≤ 0.010% | ≤ 0.040% | ≤ 0.040% |
| Molybdenum (Mo) | 0.25 – 0.35% | 0.45 – 0.60% | 0.45 – 0.60% |
| Chromium (Cr) | ≤ 0.30% | ≤ 0.35% | ≤ 0.35% |
16Mo3 Steel Mechanical Properties vs ASTM Equivalent Grades
The mechanical properties of 16Mo3 steel and its ASTM equivalents must be compared to ensure adequate performance under design conditions. Here are the key mechanical property values:
| Property | 16Mo3 (EN 10028-2) | ASTM A204 Gr. A | ASTM A387 Gr. 11 Cl. 2 |
|---|---|---|---|
| Yield Strength (MPa) | 270 – 340 | ≥ 310 | ≥ 310 |
| Tensile Strength (MPa) | 450 – 600 | 515 – 690 | 515 – 690 |
| Elongation (%) | ≥ 22 | ≥ 18 | ≥ 18 |
| Impact Test Temp (°C) | -20 (optional) | Room temp | Room temp |
| Max Service Temp (°C) | 500 – 530 | 450 – 480 | 550 |
Key takeaway: 16Mo3 steel offers a broader elongation minimum and is optimized for European pressure vessel codes, while ASTM A204 Gr.A provides higher tensile strength. For projects requiring temperatures above 500°C, ASTM A387 Grade 11 Class 2 is the preferred upgrade, extending service temperature to 550°C.
16Mo3 ASME Equivalent for Different Product Forms
In the ASME Boiler and Pressure Vessel Code (BPVC), 16Mo3 equivalents are designated with the "SA-" prefix. Below is the 16Mo3 ASME equivalent mapping by product form, as listed in ASME Section II, Part A:
| Product Form | 16Mo3 ASME Equivalent | ASME Code Reference |
|---|---|---|
| Pressure Vessel Plates | SA-204 Gr. A / Gr. B | Section II, Part A |
| Seamless Alloy Pipe | SA-335 P1 | Section II, Part A |
| Steel Castings | SA-217 WC1 | Section II, Part A |
| Welded Fittings | SA-234 WP1 | Section II, Part A |
| Forgings | SA-182 F1 | Section II, Part A |
16Mo3 Material Equivalent Worldwide Standards
Beyond ASTM and ASME, 16Mo3 has recognized equivalents across global standards. The worldwide equivalent table below helps engineers cross-reference 16Mo3 material equivalent across countries:
| Country | Standard | Equivalent Grade |
|---|---|---|
| Europe (EN) | EN 10028-2 | 16Mo3 (1.5415) |
| Germany (DIN) | DIN 17155 | 15Mo3 |
| USA (ASTM) | ASTM A204 | A204 Gr. A / Gr. B |
| USA (ASTM) | ASTM A335 | P1 (seamless pipe) |
| Japan (JIS) | JIS G3462 | STBA12 |
| China (GB) | GB/T 3077 | 15Mo3 / 12Cr1MoV |
| UK (BS) | BS 1501 | 1503-243B |
| France (AFNOR) | AFNOR | 15D3 |
| Italy (UNI) | UNI | 16Mo3 |
| International (ISO) | ISO 9329 | 16Mo3 |
Important: These cross-reference equivalents are indicative. The source standards should always be checked for the specific purpose of each material. When in doubt, consult a certified metallurgist or materials engineer for critical applications.
Looking for 16Mo3 or ASTM A204 Equivalent Steel?
We supply 16Mo3 plates, ASTM A204 Gr.A/B, A335 P1 pipes, and related grades with full mill test certificates.

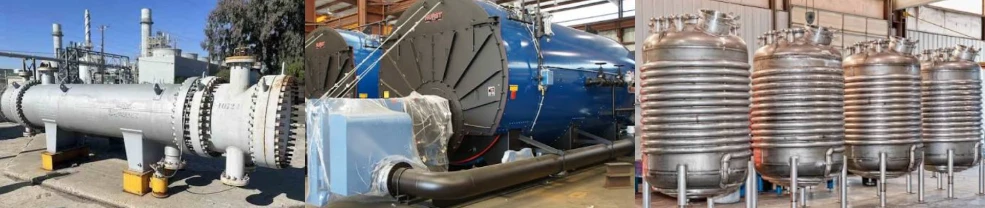

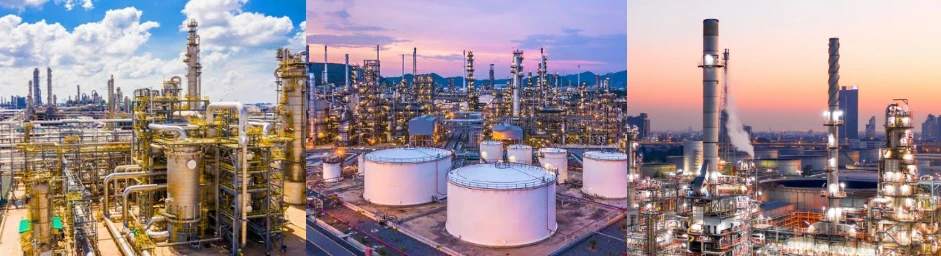

Applications of 16Mo3 Steel and ASTM Equivalent Grades
16Mo3 steel and its ASTM equivalent grades (A204, A335 P1, A387 Gr.11) are used across industries that demand reliable performance at elevated temperatures. Key applications include:
Power Generation
- Boiler drums and pressure parts in thermal power plants
- Superheater and reheater tubing
- Steam piping and headers operating up to 530°C
Oil & Gas / Petrochemical
- Refinery reactor vessels and heat exchangers
- High-pressure separators and distillation columns
- Process piping in corrosive, high-temperature environments
Chemical Processing
- Reaction vessels requiring hydrogen attack resistance
- Storage tanks for hot process media
- Welded pressure vessels per EN 13445 or ASME VIII
Shipbuilding & Industrial
- Marine boiler components
- Industrial furnace parts
- Structural components in high-thermal-stress zones
How to Choose Between 16Mo3 and ASTM A204 / A335 Grades
Selecting the right grade between 16Mo3 and its ASTM equivalents depends on several project-specific factors:
| Decision Factor | Choose 16Mo3 If... | Choose ASTM A204/A335 If... |
|---|---|---|
| Project Standard | EN / European code required | ASME / ASTM code required |
| Temperature | Service ≤ 500–530°C | Service ≤ 480°C (A204) or ≤ 550°C (A387) |
| Strength Priority | Higher ductility (elongation ≥ 22%) | Higher tensile strength (515–690 MPa) |
| Code Compliance | PED 2014/68/EU, EN 13445 | ASME BPVC VIII, B31.3 |
| Material Certification | EN 10204 3.1/3.2 | ASME Section II, ASTM A01 |
For critical applications, always validate material substitutions against the applicable design code and consult with a certified materials engineer. Both 16Mo3 and ASTM A204 are accepted under most international pressure vessel codes, but traceability documentation must match the project specification.
Get 16Mo3 And ASTM A204 Steel at Competitive Prices
Not sure which grade fits your project?
Send us your drawings or specs and our engineers will recommend the most cost-effective solution.
FAQ
16Mo3 and ASTM A204 Gr.A are not identical but are the closest equivalents. 16Mo3 follows EN 10028-2 with Mo content 0.25–0.35%, while A204 Gr.A follows ASTM A204 with Mo content 0.45–0.60%. Minor differences also exist in carbon range and tensile strength. Always validate substitutions against project codes.
What is 16Mo3 steel used for?
16Mo3 steel is used for boilers, pressure vessels, heat exchangers, steam pipelines, and storage tanks operating at elevated temperatures up to 500–530°C. It is widely used in oil, gas, petrochemical, and power generation industries.
What is the Chinese equivalent of 16Mo3?
The closest Chinese equivalent to 16Mo3 is 15Mo3 (GB standard) or 12Cr1MoV for higher temperature applications. 15Mo3 under GB/T 3077 is the most direct match, while 12Cr1MoV is used for temperatures up to 570°C.
Does 16Mo3 require post-weld heat treatment (PWHT)?
Yes, both 16Mo3 and its ASTM equivalents require preheating at 150–250°C before welding and mandatory post-weld heat treatment (PWHT) at 600–680°C. Use low-hydrogen electrodes such as AWS E7018-A1.
