What is the temperature of ASME SA 285 Grade C ?

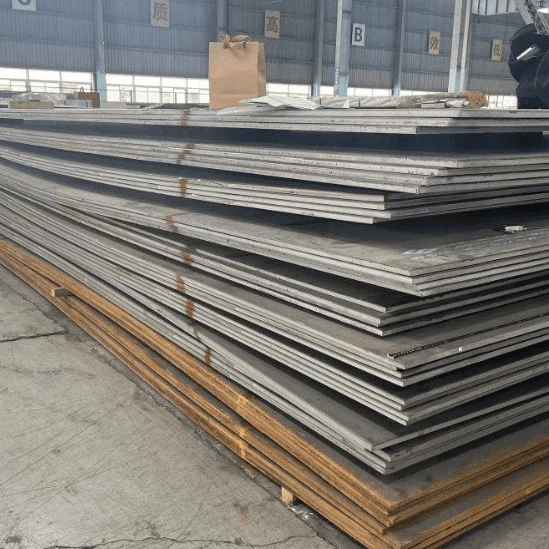

ASME SA 285 Grade C is a carbon steel plate intended for low to intermediate pressure vessel service, generally suitable for use at temperatures ranging from ambient up to approximately 200∘C(390∘F). While suitable for moderate temperatures, it is not specialized for high-temperature service, nor is it typically used for cryogenic applications.
ASME SA285 Grade C represents a specialized engineering choice for vessels where the design priority is focused on ductility and ease of shop fabrication rather than extreme pressure containment. It provides a minimum yield strength of 30 ksi (205 MPa), which is adequate for a vast range of industrial fluid storage applications. Because it is not required to be a "killed" steel, it remains one of the most accessible materials for small-to-medium fabrication shops. While it lacks the high-temperature or low-temperature specialized ratings of other grades, its predictable performance under moderate conditions makes it a reliable choice for the shells and heads of conventional pressure equipment.
Key Characteristics
Predictable Mechanicals: Consistent yield-to-tensile ratio for standard engineering calculations.
Surface Quality: As-rolled plates typically offer a clean surface for painting or coating.
Fatigue Resistance: Excellent performance in stationary applications with limited pressure cycling.
Code Compliance: Fully recognized under ASME Section VIII Division 1 for pressure vessel construction.
Grade Designation
ASME Code: SA285-C.
UNS Number: K02801.
P-Number: P-No 1 Group 1 (simplifying welding qualifications).
Comparison with ASME SA285 Grade A
Tensile Minimums: Grade C starts at 55 ksi, while Grade A starts at a much lower 45 ksi.
Design Stress: Grade C allows for higher design stress values, enabling thinner walls than Grade A for the same vessel.
Industry Preference: Grade C is the most common of the three (A, B, C) due to its optimal balance of strength and cost.
Common Applications
Fluid Reservoirs: Large stationary tanks for liquid storage in processing plants.
Condensers: Low-pressure shells for steam condensation systems.
Jacketed Vessels: Outer shells of heated tanks for the food and beverage industry.
What are the main applications of SA285 Grade C?
SA285 Grade C is commonly used in the construction of pressure vessels, heat exchangers, and other types of industrial equipment. Its low carbon content gives it good weldability, which makes it easy to fabricate and join. It is typically used in applications where the steel is exposed to low or moderate pressure and temperature conditions, such as in steam boilers and chemical plants.
What is the cost of SA285 Grade C?
The cost of SA285 Grade C is generally lower than that of higher-strength alloys due to its relatively simple carbon-steel composition. However, the cost can vary based on market demand, production methods, and supply chain conditions. Compared to high-alloy steels or other more advanced materials like SA516 Grade 70, SA285 Grade C remains an economical choice for applications requiring moderate strength and corrosion resistance.
What is the impact resistance of SA285 Grade C?
SA285 Grade C provides reasonable impact resistance under moderate conditions but is not designed for high-impact or shock-loading environments. It has moderate toughness, making it suitable for low-pressure systems that do not experience significant mechanical impacts or thermal cycling. For applications involving higher impact or dynamic stresses, other materials with improved toughness and higher-strength ratings would be more appropriate.
Dimension Range
|
Grade |
Product type |
Thickness |
Width |
Length |
|---|---|---|---|---|
|
Grade C |
Plate |
4.762 - 50.8 |
1800 - 3050 |
6100 - 25910 |
Mechanical Properties
|
Grade |
Thickness |
Yield strength |
Tensile strength |
Elongation in 2" 1) |
Elongation in 8" 1) |
|---|---|---|---|---|---|
|
Grade C |
4.762 - 50.8 |
30 |
55 - 75 |
27 |
23 |
Chemical Composition
|
Element |
Composition (%) |
|---|---|
|
Carbon (C) |
0.24 max |
|
Manganese (Mn) |
0.90 max |
|
Phosphorus (P) |
0.035 max |
|
Sulfur (S) |
0.035 max |
1What is the tensile strength of SA285 Grade C?
SA285 Grade C has a tensile strength of about 415 MPa. This tensile strength is moderate and suitable for applications where the material is subjected to low- to medium-stress environments. It offers good strength without being overly hard, ensuring that it remains ductile enough for pressure vessel applications while providing adequate strength for the structural integrity of components under normal operating conditions.
2What is the yield strength of SA285 Grade C?
The yield strength of ASME SA285 Grade C is approximately 205 MPa. This relatively low yield strength makes it suitable for use in applications that involve low pressure and temperature. Its yield strength ensures that it performs reliably in conditions where stresses are moderate, providing a balance between strength and ductility for ease of fabrication and serviceability in pressure vessel construction.
3How does SA285 Grade C perform in low-temperature environments?
SA285 Grade C is not ideal for low-temperature environments. Its mechanical properties are designed for moderate temperatures, and at lower temperatures, the steel may become brittle and prone to cracking. For applications where low temperatures are a concern, materials specifically designed for cryogenic or low-temperature environments, such as SA537 or other low-alloy steels, are preferred to maintain structural integrity and toughness.
4What is the mechanical properties of SA285 Grade C?
SA285 Grade C has a yield strength of approximately 205 MPa and a tensile strength of 415 MPa. It exhibits good elongation, typically 22% at a gauge length of 8 inches, allowing for a reasonable amount of deformation before failure. The material's moderate strength and high ductility make it suitable for pressure vessel applications where low- to moderate-stress conditions are encountered.
5What is SA285 Grade C?
ASME SA285 Grade C is a carbon steel used primarily in the fabrication of pressure vessels, heat exchangers, and boilers. It has good weldability, making it ideal for use in lower-pressure systems. Grade C offers moderate tensile strength and is commonly used in the manufacturing of vessels that operate at relatively low pressure and temperature conditions, typically below 300°F (150°C).
6What are the chemical composition of SA285 Grade C?
ASME SA285 Grade C consists of primarily carbon (0.23–0.28%), manganese (0.60–0.90%), silicon (0.13–0.45%), and sulfur (0.035% max). The alloy also includes trace amounts of phosphorus and other elements that enhance its overall properties. This composition allows the steel to possess good weldability and moderate strength, making it suitable for applications in pressure vessels and boilers operating under moderate conditions.
7What is the welding process for SA285 Grade C?
SA285 Grade C has good weldability, which makes it ideal for welding in the construction of pressure vessels and other equipment. However, preheating may be required before welding to prevent cracking, especially for thicker sections. Low-hydrogen electrodes are recommended to avoid hydrogen-induced cracking, and post-weld heat treatment may be needed to relieve residual stresses, improving the material's overall strength and ductility.
