JIS G3119 Structural Steel Sheet
Want to know more about our products? Please contact us by email or phone.
Gnee Steel (Tianjin) Co., Ltd. is one of the most professional jis g3119 structural steel sheet manufacturers and suppliers in China. Welcome to wholesale customized jis g3119 structural steel sheet at competitive price from our factory. Good service and quality products are available.
Products Description
JIS G3119 is the standard for steel plates for boilers and pressure vessels specified in the Japanese Industrial standard.
It mainly covers various steel plates used in the manufacture of boilers and pressure vessels, which have excellent heat resistance, corrosion resistance and mechanical properties, and can meet the requirements of use in harsh environments such as high temperature and high pressure. The JIS G3119 standard includes different grades of steel plates, each with its own specific chemical composition, mechanical properties and uses.
JIS G3119 specification include steel grades SBV1A, SBV1B, SBV2, SBV3. Steel plate application of this specification is to manufacture pressure vessels for high pressure equipment, it shall not be used for high temperature environment. As a kind of low alloy steel, steel grades of this specification has very good toughness and weld performance, alloy element can be added according to agreement.
Mechanical Properties
| Steel Grade | Min Yield strength in different thickness | Min tensile strength in different thickness | Elongation in different thickness | |
|---|---|---|---|---|
| SBV1A | ≥315 | 520-660 | ≤25 | 25≤t≤150 |
| SBV1B | ≥345 | 550-690 | ≤25 | 25≤t≤150 |
| SBV2 | ≥345 | 550-690 | ≤25 | 25≤t≤150 |
| SBV3 | t<25 | 25≤t≤50 | 50<t<150 | 0.15-0.40 |
Physical Properties
Thickness: 5mm-100mm
Length: 3000 mm-18000 mm
Width: 1500 mm-4020 mm
Application: Manufacturing reactor, heat exchanger, separator, boiler in power station, spherical tank, liquefied gas, nuclear reactor pressure vessel and so on
Supplementary Technology: Z15, Z25, Z35, Ultrasonic test, Sharp V-notch impact test, HIC, SSC, SPWHT, Macrostructure, detection of defects, and Hardness as well as DWTT test
Surface: Coated or Shot Blasting and Painting.
Delivery state: Hot Rolled, Cold Rolled
Steel Grade: SBV1A, SBV1B, SBV2, SBV3

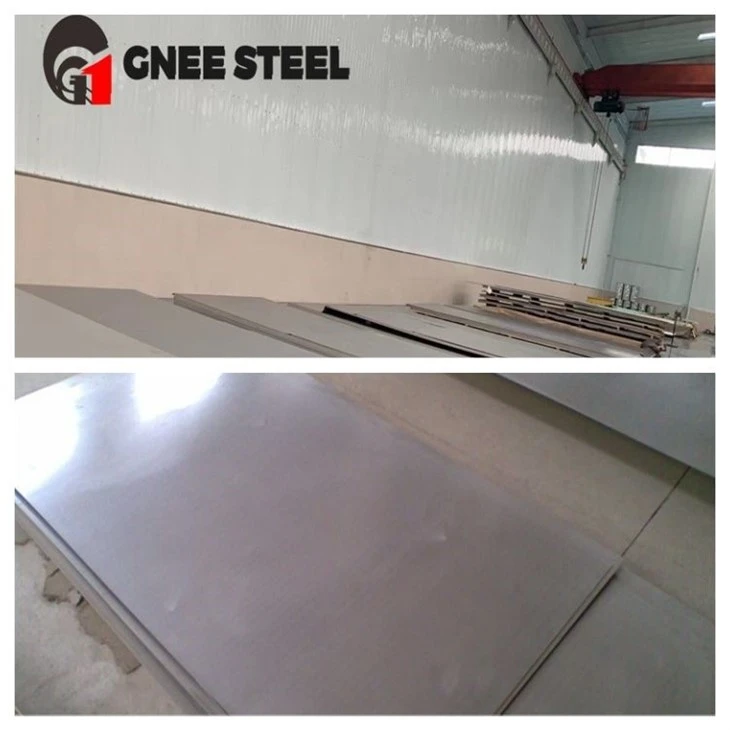

Product Image
GNEE Group Team Photo
GNEE Group Customers Visit
We support multi-specification, multi-specification steel plate customization, if you have JIS G3119 structural steel sheet or other alloy steel plate product customization needs, please contact me.
