HP295 hot rolled steel is the premier material for manufacturing welded high-pressure steel cylinders due to its ideal combination of controlled chemical composition, balanced mechanical properties, exceptional formability, superior weldability, and strict compliance with global safety standards. As a specialized 'cylinder steel' defined by GB/T 6653-2017, it is engineered exclusively for the rigorous demands of producing pressure vessels that safely contain liquefied petroleum gas (LPG), oxygen, carbon dioxide, acetylene, and other industrial gases under high internal pressures.
As a professional steel manufacturer, GNEE supplies HP295 and a wide range of gas cylinder steels, helping global clients select the most suitable material for their applications.
Technical standards and performance requirements
The carefully balanced chemistry of HP295 is the foundation of its safety and performance, prioritizing purity, ductility, and weldability over high carbon content.
Chemical Composition Limits for HP295 Hot Rolled Steel
| Element | C (Max) | Si (Max) | Mn (Max) | P (Max) | S (Max) | P+S (Max) | Als (Min) |
|---|---|---|---|---|---|---|---|
| HP295 | 0.20% | 0.35% | 1.00% | 0.035% | 0.035% | 0.060% | 0.015% |
This composition system embodies the design philosophy of low carbon, low sulfur and phosphorus, and appropriate manganese. The low carbon content ensures good weldability and ductility of the steel; the addition of appropriate manganese enhances strength through solid solution strengthening without significantly compromising toughness; and the strict control of sulfur and phosphorus ensures steel purity, reduces brittleness, and improves low-temperature impact toughness.
Mechanical Properties of HP295 Hot Rolled Steel
| Property | Standard Requirement | Technical Significance for Cylinders |
|---|---|---|
| Yield Strength (Rp0.2) | ≥295 MPa | Resists permanent deformation under typical working pressures (15–25 MPa). |
| Tensile Strength (Rm) | 440–560 MPa | Provides an exceptional 20:1 safety margin against burst failure. |
| Elongation (A) | ≥26% (t ≥3mm)≥20% (t <3mm) | Superior ductility for deep drawing, necking, and closing without cracks. |
| 180° Cold Bend Test | d=2a, No cracks | Proven formability for complex cylinder shell fabrication. |
| Charpy V-Notch Impact | ≥27 J (Room Temp) | High toughness to resist shocks, drops, and thermal cycling. |
| Yield Ratio (Rel/Rm) | ≤0.80 | Low yield ratio ensures predictable, ductile failure rather than sudden brittle burst. |
Hot Rolling Production Process for HP295
HP295 is produced via advanced Thermomechanical Controlled Processing (TMCP) to ensure uniform properties and low yield ratio.
Key Manufacturing Steps:
- Steelmaking & Refining: Basic Oxygen Furnace (BOF) + Ladle Furnace (LF) + Vacuum Degassing (VD) to achieve ultra-low sulfur and phosphorus levels (P+S < 0.06%).
- Continuous Casting: Cast into slab, ensuring internal soundness and no central segregation.
- Heating: Slabs are reheated to 1250–1300°C for uniform austenitization.
- Hot Rolling: Multi-pass rolling in a finishing mill, with finish rolling temperature (FRT) controlled at 870–890°C to ensure fine grain recrystallizatio.

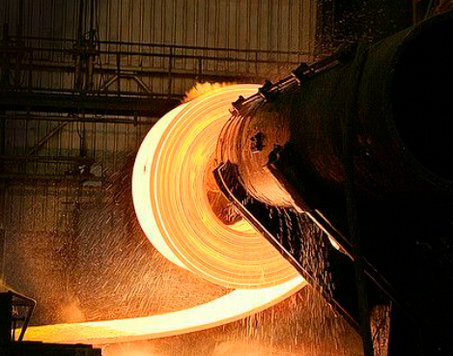

HP295 Hot Rolled Steel Manufacturing Process

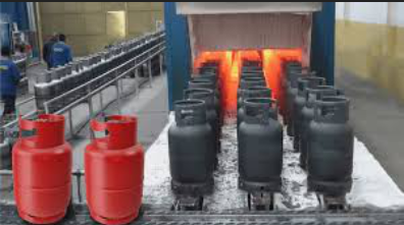

Manufacturing Process Adaptability of HP295 Steel for Welding Cylinders
HP295 has become the mainstream choice for welding cylinder steel primarily due to its excellent process compatibility:
Stamping Forming Performance: HP295 has a low yield strength ratio and high elongation, exhibiting good deformation capacity during stamping, meeting the deep-drawing requirements of cylinder heads. Studies show that optimal forming performance is achieved when the coiling temperature is controlled at 660-680℃.
Welding Performance: Due to its carbon content being controlled below 0.20%, HP295 has a low carbon equivalent, resulting in low sensitivity to cold cracking during welding. High-strength weld joints can be obtained during circumferential and longitudinal welding of cylinders, with minimal embrittlement tendency in the heat-affected zone.
Aging Resistance: HP295 requires good resistance to natural aging, meaning that the material's mechanical properties will not significantly deteriorate during long-term storage. This is closely related to the control of dissolved nitrogen content in the steel; sufficient aluminum deoxidation and aluminum nitride formation contribute to performance stability.
Why HP295 Is Ideal for High-Pressure Cylinder Production
Unmatched Formability
The high elongation (≥26%) and low yield ratio allow HP295 hot-rolled coils to undergo extreme cold forming without failure:
- Deep Drawing: The flat steel coil is formed into a cylindrical shell.
- Necking: The top end is reduced in diameter.
- Head Closing: The bottom and top ends are shaped and sealed.
- This eliminates cracks and ensures a flawless pressure boundary.
Superior Weldability
Low Carbon Equivalent (CEV ≤0.30%) eliminates the risk of cold cracking in longitudinal and circumferential welds.
Welded joints maintain >90% of base metal strength, ensuring no weak points in the cylinder.
Fully compatible with high-speed automated welding (SAW, GMAW) used in mass production.
HP295 For High-Pressure Cylinder
Pressure Safety & Reliability
High Strength: The 295 MPa yield strength easily handles the service pressures of standard 40L oxygen/CO₂ cylinders (15–20 MPa) and 15kg LPG cylinders (1.6–2.1 MPa).
Toughness: Fine-grained microstructure resists crack propagation, even after impact or fatigue from repeated filling cycles.
Corrosion Resistance: Clean, low-sulfur surface ensures excellent adhesion of protective paints and coatings, preventing external rust and internal gas corrosion.
Cost-Effectiveness
- Hot-Rolled Economy: Produced as hot-rolled coils, avoiding the higher cost of cold-rolled or alloyed steels.
- High Material Yield: Excellent ductility results in minimal scrap during forming.
- Long Service Life: HP295 cylinders meet re-inspection standards for 15–30 years of safe operation.

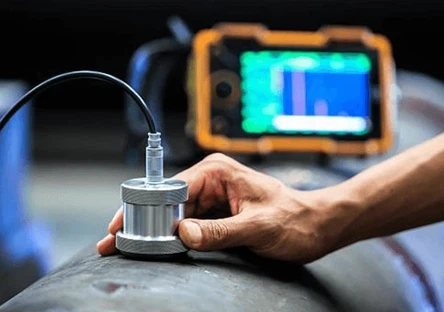

Quality Assurance & Compliance of HP295 steel
HP295 hot-rolled steel for cylinders must pass rigorous quality control:
Chemical Analysis: Full spectral testing to ensure compliance with GB/T 6653-2017.
Mechanical Testing: Tensile, bend, and Charpy impact tests for every heat.
Non-Destructive Testing (NDT): Ultrasonic testing (UT) for internal defects in coils.
Surface Inspection: Free from scale, scratches, or laminations that could compromise cylinder integrity.
At GNEE, we operate a state-of-the-art manufacturing facility that ensures every batch of steel plate we produce maintains consistent grain structure and superior sur face quality. By choosing a direct manufacturer like GNEE, you benefit from factory-direct pricing and rigorous quality control that middleman traders cannot offer.
Contact now to get the HP295 steel votrt
What type of steel is used in pressure vessels?
Properties of Primary PVQ Grades. While there are multiple grades of PVQ steel, ASTM A516 and ASTM A537 are most commonly used for pressure vessel applications due to their balance of strength and ductility
In which fields is HP295 mainly used?
HP295 is mainly used in the manufacture of welded high-pressure gas cylinders such as liquefied petroleum gas (LPG) cylinders and acetylene cylinders. Typical applications include the manufacture of cylinder bodies for YSP-15 and YSP-10 type LPG cylinders.
