As a professional steel plate manufacturer and global exporter, GNEE specializes in supplying high-performance pressure vessel and low-temperature steel plates for industrial projects worldwide.
SA553 Type 1 chemical composition is specifically designed for cryogenic service applications requiring excellent toughness, weldability, and strength at extremely low temperatures. Widely used in LNG storage tanks, cryogenic pressure vessels, and low-temperature processing equipment, SA553 Type 1 steel offers reliable performance in demanding environments.
With years of manufacturing experience, strict quality inspection systems, and large export capacity, GNEE provides certified SA553 Type 1 steel plates that meet ASTM and ASME standards for global EPC contractors, fabricators, and industrial buyers.
Click to learn more about SA533 Type1
What is SA553 Type 1 Steel?
SA553 Type 1 is a quenched and tempered 9% nickel alloy steel plate primarily used for pressure vessels operating at cryogenic temperatures. This material is produced according to ASME SA553/ASTM A553 specifications and is widely recognized for its exceptional low-temperature impact resistance.
The steel maintains excellent toughness even at temperatures as low as -196°C, making it ideal for LNG storage tanks and liquefied gas processing equipment.
SA553 Type 1 Chemical Composition
The SA553 Type 1 chemical composition is carefully controlled to achieve excellent mechanical performance and cryogenic toughness. Nickel is the major alloying element that significantly improves low-temperature properties.
SA553 Type 1 Chemical Composition Table
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.13 |
| Manganese (Mn) | 0.30 – 0.80 |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.040 |
| Silicon (Si) | 0.15 – 0.30 |
| Nickel (Ni) | 8.50 – 9.50 |
The high nickel content is the most important characteristic of SA553 Type 1 steel plate. It enables the steel to maintain structural integrity and impact toughness in extremely cold service environments.
SA553 Type 1 Mechanical Properties
In addition to the controlled SA553 Type 1 chemical composition, the steel also offers outstanding mechanical properties after quenching and tempering heat treatment.
SA553 Type 1 Mechanical Properties Table
| Property | Value |
|---|---|
| Tensile Strength | 690 – 825 MPa |
| Yield Strength | ≥ 585 MPa |
| Elongation | ≥ 20% |
| Impact Test Temperature | Up to -196°C |
| Heat Treatment | Quenched & Tempered |
These properties make SA553 Type 1 one of the preferred materials for cryogenic engineering projects worldwide.

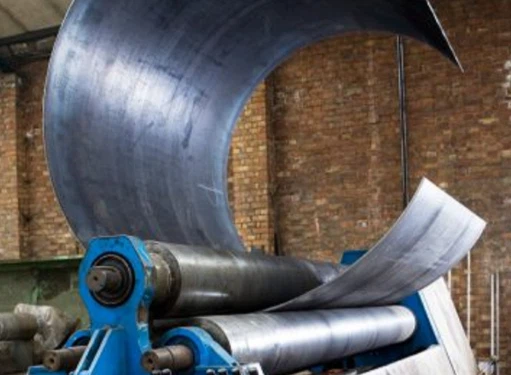

Heavy steel plate rolling production line at GNEE factory
Applications of SA553 Type 1 Steel Plate
Due to its excellent cryogenic performance, SA553 Type 1 steel is widely used in industries involving liquefied gases and low-temperature storage systems.
Common SA553 Type 1 Applications
- LNG storage tanks
- Liquefied natural gas transportation equipment
- Cryogenic pressure vessels
- Liquid oxygen storage tanks
- Liquid nitrogen storage containers
- Ethylene processing equipment
- Offshore LNG platforms
- Petrochemical cryogenic facilities
Many EPC contractors and engineering companies choose SA553 Type 1 steel because of its reliable performance under severe operating conditions.
Why is Nickel Important in SA553 Type 1 Chemical Composition?
Nickel plays a critical role in the SA553 Type 1 chemical composition. The addition of approximately 9% nickel dramatically improves the steel's toughness and ductility at sub-zero temperatures.
Benefits of High Nickel Content
- Prevents brittle fracture at low temperatures
- Improves impact resistance
- Enhances toughness and flexibility
- Increases structural reliability
- Supports long-term cryogenic service life
Without nickel alloying, ordinary carbon steel would become brittle and unsafe in LNG or cryogenic applications.
SA553 Type 1 vs SA353 vs SA203 Grade D
Buyers often compare SA553 Type 1 with other low-temperature pressure vessel steels when selecting materials for LNG projects.
SA553 Type 1 Comparison Table
| Grade | Nickel Content | Temperature Resistance | Main Application |
|---|---|---|---|
| SA553 Type 1 | 9% Ni | -196°C | LNG Storage Tanks |
| SA353 | 9% Ni | -196°C | Cryogenic Pressure Vessels |
| SA203 Grade D | 3.5% Ni | -101°C | Low-Temperature Service |
SA553 Type 1 offers superior cryogenic toughness compared to conventional pressure vessel steels.

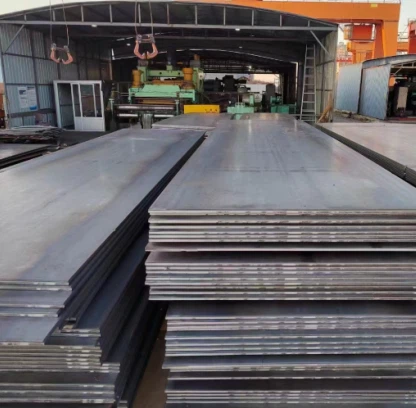

Finished SA553 Type 1 steel plates in warehouse
Conclusion
Understanding the SA553 Type 1 chemical composition is essential when selecting materials for LNG storage tanks, cryogenic pressure vessels, and low-temperature industrial equipment. With its high nickel content, exceptional toughness, and reliable mechanical properties, SA553 Type 1 steel remains one of the most trusted cryogenic steel grades in the global market.
As an experienced manufacturer and exporter, GNEE is committed to supplying high-quality SA553 Type 1 steel plates with strict quality control, competitive pricing, and fast international delivery.
If you are looking for a reliable supplier for your cryogenic steel project, contact GNEE today to get technical support, product specifications, and a competitive quotation.
FAQ About SA553 Type 1
What is the main alloying element in SA553 Type 1?
Nickel is the primary alloying element in SA553 Type 1 steel, with a content of approximately 9%.
What temperature can SA553 Type 1 withstand?
SA553 Type 1 can maintain excellent toughness at temperatures as low as -196°C.
Is SA553 Type 1 suitable for LNG tanks?
Yes. SA553 Type 1 is widely used for LNG storage tanks and cryogenic pressure vessels because of its outstanding low-temperature performance.
Can GNEE provide customized SA553 Type 1 steel plates?
Yes. GNEE can provide customized thicknesses, widths, lengths, surface treatments, and cutting services according to project requirements.
Does GNEE provide third-party inspection?
Yes. Third-party inspections such as SGS, BV, TUV, and DNV are available upon request.
